| GENERAL |

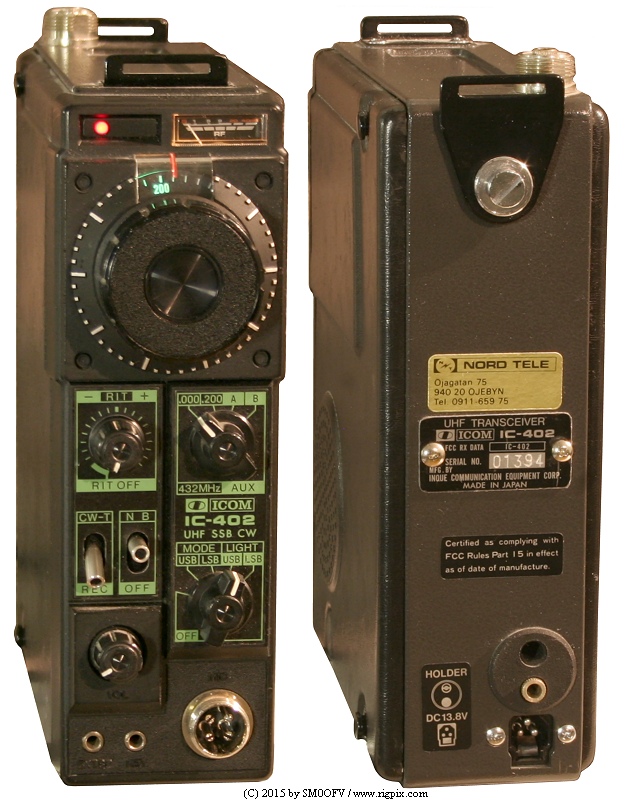

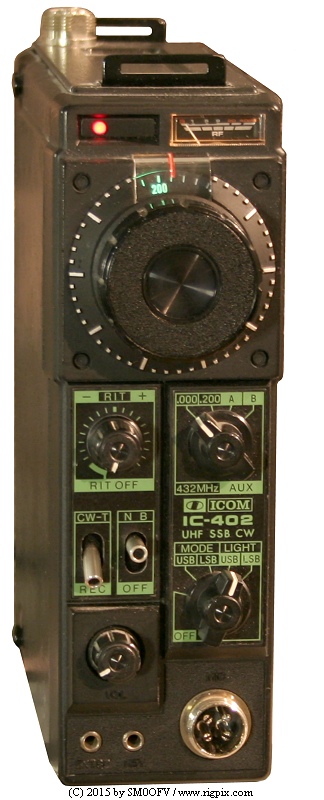

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-435.2 MHz (Four 200 KHz VXO ranges) |
| Tuning steps: | Analog / continuous |
| Frequency stability: | Max ? ppm |
| Mode: | USB / LSB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | No |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 100-320 mA
TX: 670-930 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 (Or internal telescopic whip) |
| Dimensions (W*H*D): | 61*183*162 mm (2.4*7.2*6.4") |
| Weight: | 2 Kg (4.4 lb), with batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 57.6 MHz
2nd IF: 10.74 MHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Selectivity: | 2.4 KHz (-6 dB)
4.8 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
SSB: 3 W (PEP)
CW: 3 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-19xx (Discontinued) |
| Additional info: | New price 1978 in Sweden: SEK 2750:- |
| Related documents: | User manual (7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-15
BC-20
IC-3PS
IC-30L
IC-SM2
N-900C
|
NiCd battery pack and external AC charger
NiCd battery pack and internal DC charger
Power supply, 13.8 VDC, 3 A
Linear amplifier, 10 W
Desk microphone
NiCd battery cell, 1.2 V (10 needed)
|
|
