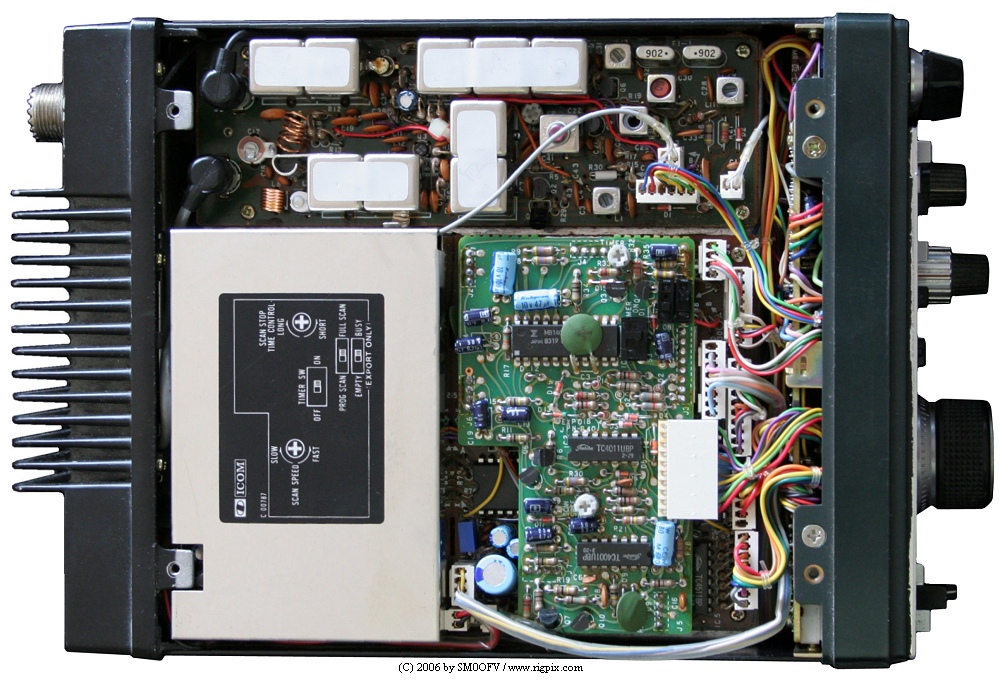

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | FM: 5 / 1 KHz
SSB/CW: 1 Khz / 100 Hz |
| Frequency stability: | Within 1.5 KHz @ -10° to +60°C (14° to 140°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
5 regular
RAM storage
|
| Repeater shift / offset: | ± Any in-band, in 100 KHz steps |
| Power supply: | 13.8 VDC ±15% (3-pin connector) |
| Current drain / power consumption: | RX: 700-900 mA
TX: 1.6-5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*64*218 mm (6.69*2.52*8.58") |
| Weight: | 2.5 Kg (5.51 lb) |
| Other features: | 1750 Hz repeater tone. NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.75 MHz
Double conversion superheterodyne (FM)
1st IF: 10.75 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
FM: <0.6 uV for 20 dB noise quieting
SSB/CW: <0.5 uV (10 dB S+N/N)
|
| Selectivity: |
FM
15 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
|
| Image rejection: | >60 dB |
| AF output power / speaker: | 2 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| FM: | 25 W | 1 W |
| SSB (PEP): | 25 W | 1 W |
| CW: | 25 W | 1 W |
|
| Modulation system: |
FM: Variable reactance frequency modulation
SSB: Balanced modulation
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 1.3 Kohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1983-198x (Discontinued) |
| Additional info: |
New price october 1983 in Sweden: SEK 5490:-
New price december 1983 in Sweden: SEK 5725:-
New price december 1984 in Sweden: SEK 4695:-
|
| Related documents: | User manual (4.9 MB) |
| Modifications: | |
| Reviews: | |
| Options / Accessories: |
BC-10A
IC-CK1
IC-HM7
IC-HM8
IC-HM10
IC-MB9
IC-SM5
IC-SP4
|
Memory backup AC power supply
Memory backup DC power cord
Hand microphone
Hand microphone with DTMF pad
Standard hand microphone with scanning function
Quick release mobile mounting bracket
Electret desk microphone
Mobile speaker
|
|
