| GENERAL |

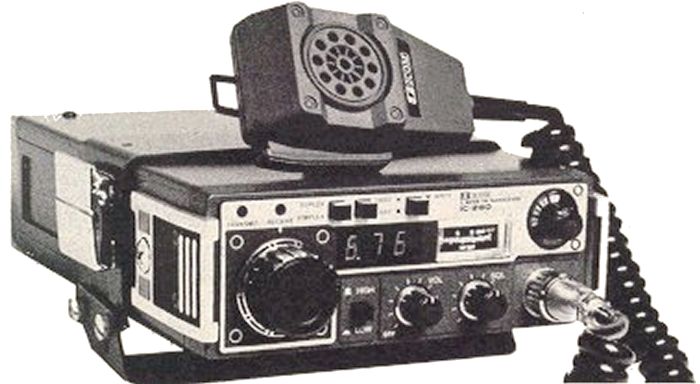

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | 25 KHz |
| Frequency stability: | ±1.5 KHz @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: |
3 regular
RAM storage
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 500-700 mA
TX: 1.2 to 2.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 156*58*228 mm (6.14*2.28*8.98") |
| Weight: | 2.2 Kg (4.85 lb) |
| Other features: | Detachable front panel. 1750 Hz tone call. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.6 uV (20 dB noise quieting) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
?
?
?
IC-3PE
SM-2
|
Remote cable kit
Mobile mounting bracket
DC power cord with memory backup power plug
AC power supply. 13.5 VDC, 3 A
Desk microphone
|
|
