| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 50-54 MHz (6 m) / 69.9-70.5 MHz (4 m) / 144-148 MHz (2 m)
RX: 0.009-30 / 50-54 / 69.9-70.5 / 110-148 MHz
|
| Tuning steps: | 1 / 10 / 100 Hz, 1 KHz |
| Frequency stability: | ±? ppm |
| Mode: | AM / AM-sync / FM / SSB / CW |
| Channels / memory management: |
297 regular in 3 banks
|
| Repeater shift / offset: | ±0-2 MHz |
| Power supply: | 13.8 and 50 VDC from external switch mode PSU |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |

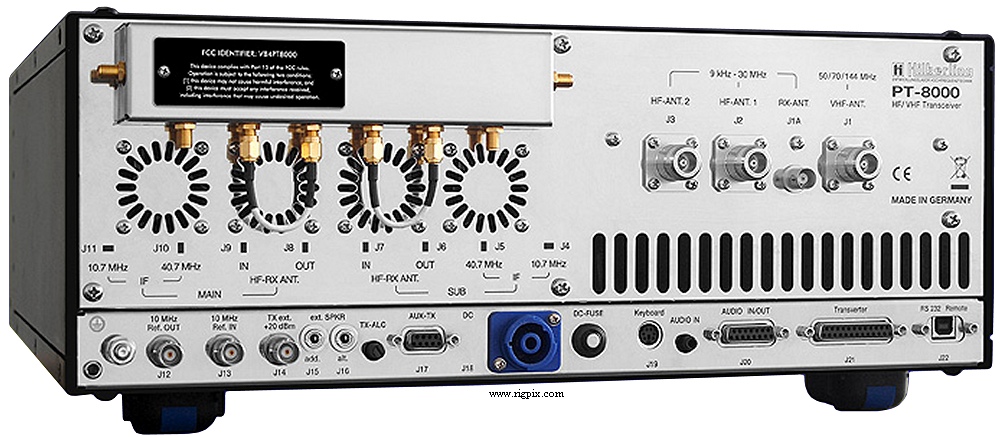

| Antenna impedance / connector: | 50 ohm / HF: Two N-jack. VHF: One N-jack. RX only: BNC |
| Dimensions (W*H*D): | 425*175*465 mm (16.7*6.9*18.3") |
| Weight: | 28 Kg (62 lb) |
| Other features: |
Built-in keyer and voice recorder. Scanning. Twin RX.
Spectrum scope and waterfall can be displayed on a Windows PC with
the IF-Monitor software.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 40.7 MHz
2nd IF: 10.7 KHz
|
| Sensitivity: |
AM (10 dB S+N/N, 6 KHz BW)
0.009-1.8 MHz: 2 uV
1.8-30 MHz: 1.2 uV
50-54 MHz: 1 uV
69.9-70.5 MHz: 1 uV
110-144 MHz: 1.5 uV
144-148 MHz: 1 uV
FM (10 dB S+N/N, 15 KHz BW)
0.009-1.8 MHz: 0.5 uV
1.8-30 MHz: 0.18 uV
50-54 MHz: 0.16 uV
69.9-70.5 MHz: 0.16 uV
110-144 MHz: 0.18 uV
144-148 MHz: 0.15 uV
SSB (10 dB S+N/N, 2.4 KHz BW)
0.009-1.8 MHz: 1 uV
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.25 uV
69.9-70.5 MHz: 0.24 uV
110-144 MHz: 0.36 uV
144-148 MHz: 0.24 uV
CW (10 dB S+N/N, 500 Hz BW)
0.009-1.8 MHz: 0.5 uV
1.8-30 MHz: 0.1 uV
50-54 MHz: 0.1 uV
69.9-70.5 MHz: 0.09 uV
110-144 MHz: 0.14 uV
144-148 MHz: 0.09 uV
|
| Selectivity: | Variable DSP bandwidth: 0.5-6 KHz and 15 KHz |
| Image rejection: | |
| AF output power / speaker: | 2*2.4 W (main/sub) at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m | 4 m | 2 m |
|---|
| AM: | 50 W | 25 W | 25 W | 25 W |
| FM: | 200 W | 100 W | 100 W | 100 W |
| SSB (PEP): | 200 W | 100 W | 100 W | 100 W |
| CW: | 200 W | 100 W | 100 W | 100 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±3 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Germany, 20xx-20xx |
| Additional info: |
Available in the following colors:
Anthracite gray
Bordeaux violet
Brilliant blue
Bronze green
Tele gray1
New price 2014 in Germany: Euro 13290.00
New price, june 2023 in Germany: Euro 14500.00
|
| Related documents: |
User manual (9.9 MB)
Brochure (1.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
