Hammarlund HQ-110C

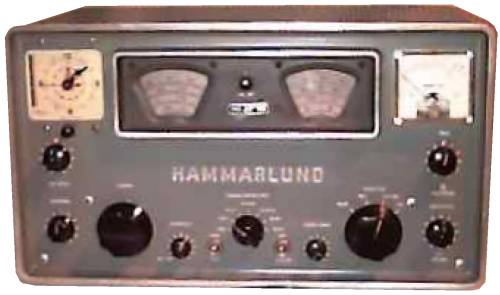

A picture of Hammarlund HQ-110C

SPECIFICATIONS

GENERAL
Type:Amateur HF/VHF receiver
Frequency range: 6-160 m in seven bands:
1.8-2 MHz
3.5-4 MHz
7-7.3 MHz
14-14.4 MHz
21-21.6 MHz
28-30 MHz
50-54 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: None
Power supply:Mains, USA: 105-125 VAC (Fixed power cord)
Mains, export: 115-230 VAC (Fixed power cord)
Current drain / power consumption:80 W
Antenna impedance / connector:? ohm / Screw terminals
Dimensions (W*H*D):413*235*234 mm (16.25*9.25*9.2")
Weight:13.61 Kg (30 lb)
Other features:100 KHz XTAL calibrator.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (80-160 m)
IF: 455 KHz
Double conversion superheterodyne (6-40 m)
1st IF: 3.035 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:>1 W at ?% distortion / External only
External speaker connector:3.2 ohm, screw terminals




MISCELLANEOUS
Manufactured:USA, 1957-1961 (Discontinued)
Additional info:Same as HQ-110 but with a factory mounted clock
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
S-100 Matching speaker
