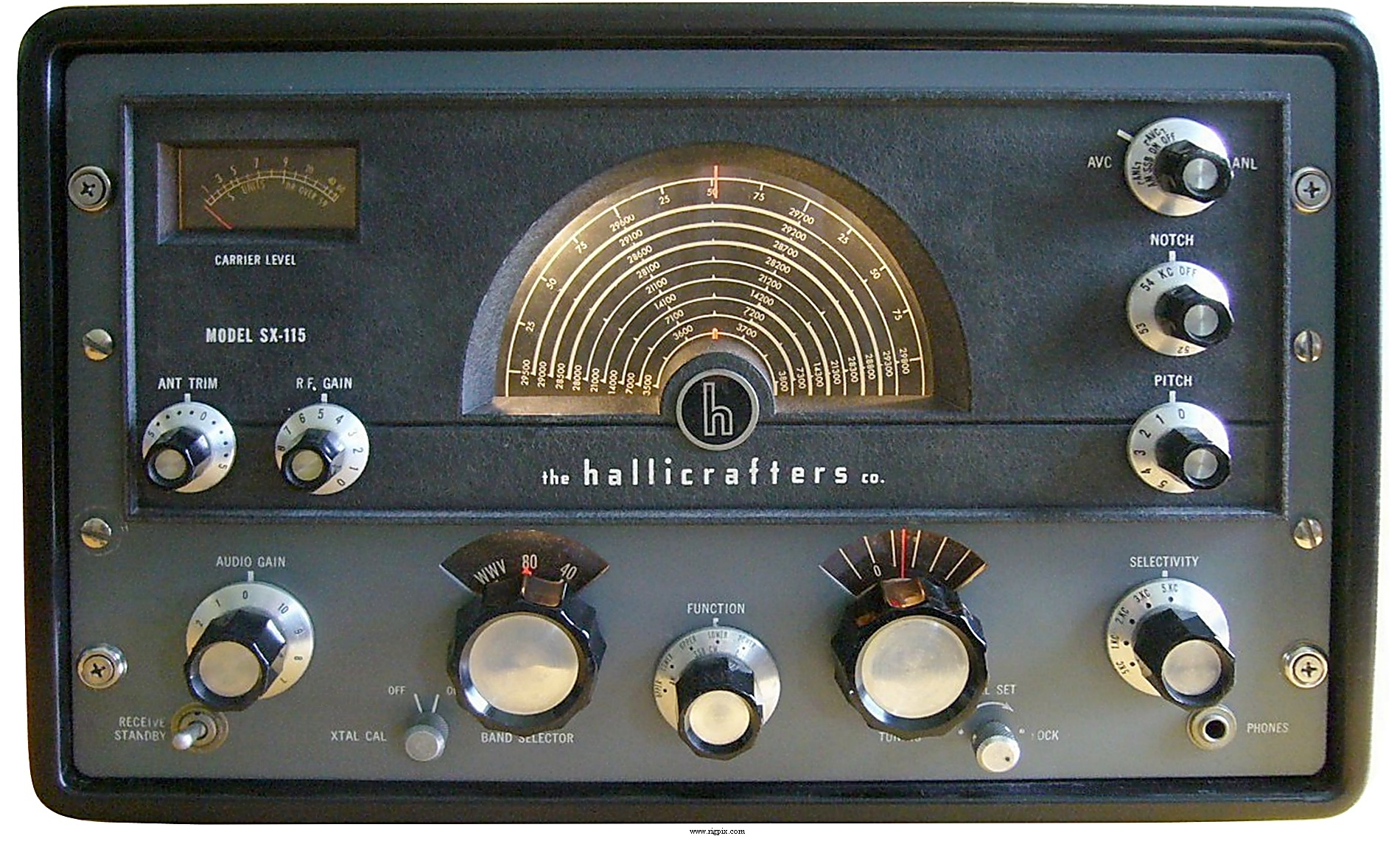

| GENERAL |
| Type: | HF receiver |
| Frequency range: |
10-80 m + WWV in nine bands
| 80 m: | 3.5-4.0 MHz |
| 40 m: | 7.0-7.5 MHz |
| 20 m: | 14.0-14.5 MHz |
| 15 m: | 21.0-21.5 MHz |
| 10 m A: | 28.0-28.5 MHz |
| 10 m B: | 28.5-29.0 MHz |
| 10 m C: | 29.0-29.5 MHz |
| 10 m D: | 29.5-30.0 MHz |
| WWV: | 9.6-10 MHz |
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | Less than 300 Hz after 15 minute warmup (No temperature reference) |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
None
|
| Power supply: | Mains: 105-125 VAC (Fixed power cord) |
| Current drain / power consumption: | 85 W |

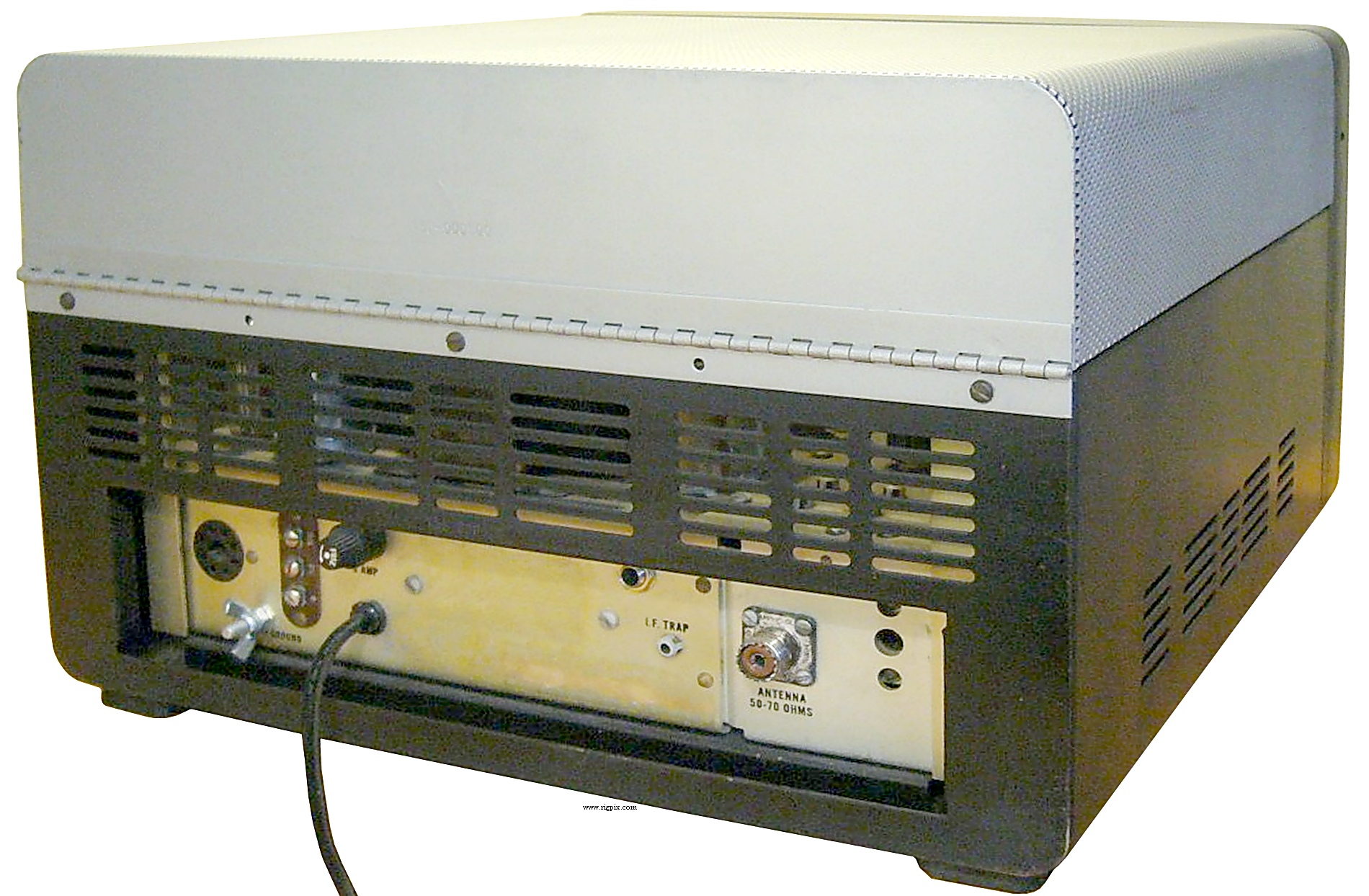

| Antenna impedance / connector: | 50-70 ohm / SO-239 |
| Dimensions (W*H*D): | 406*267*406 mm (16*10.5*16") |
| Weight: | 20 Kg (44.09 lb) |
| Other features: | Noise limiter. Notch filter. 100 KHz XTAL calibrator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 6.505-6.005 MHz
2nd IF: 1.005 MHz
3rd IF: 50.75 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB/CW: 0.5 uV (10 dB S/N)
|
| Squelch sensitivity: | - |
| Noise figure: | |
| Selectivity: |
Available bandwidths @ -6 dB
500 Hz, 1, 2, 3 and 5 KHz
|
| Image rejection: | |
| AF output power / speaker: | 1.5 W at 10% distortion / No internal speaker |
| External speaker connector: | Screw terminals, 3.2 and 500 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1961-1964 (Discontinued) |
| Additional info: | |
| Related documents: | User/service manual (2.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
