| GENERAL |

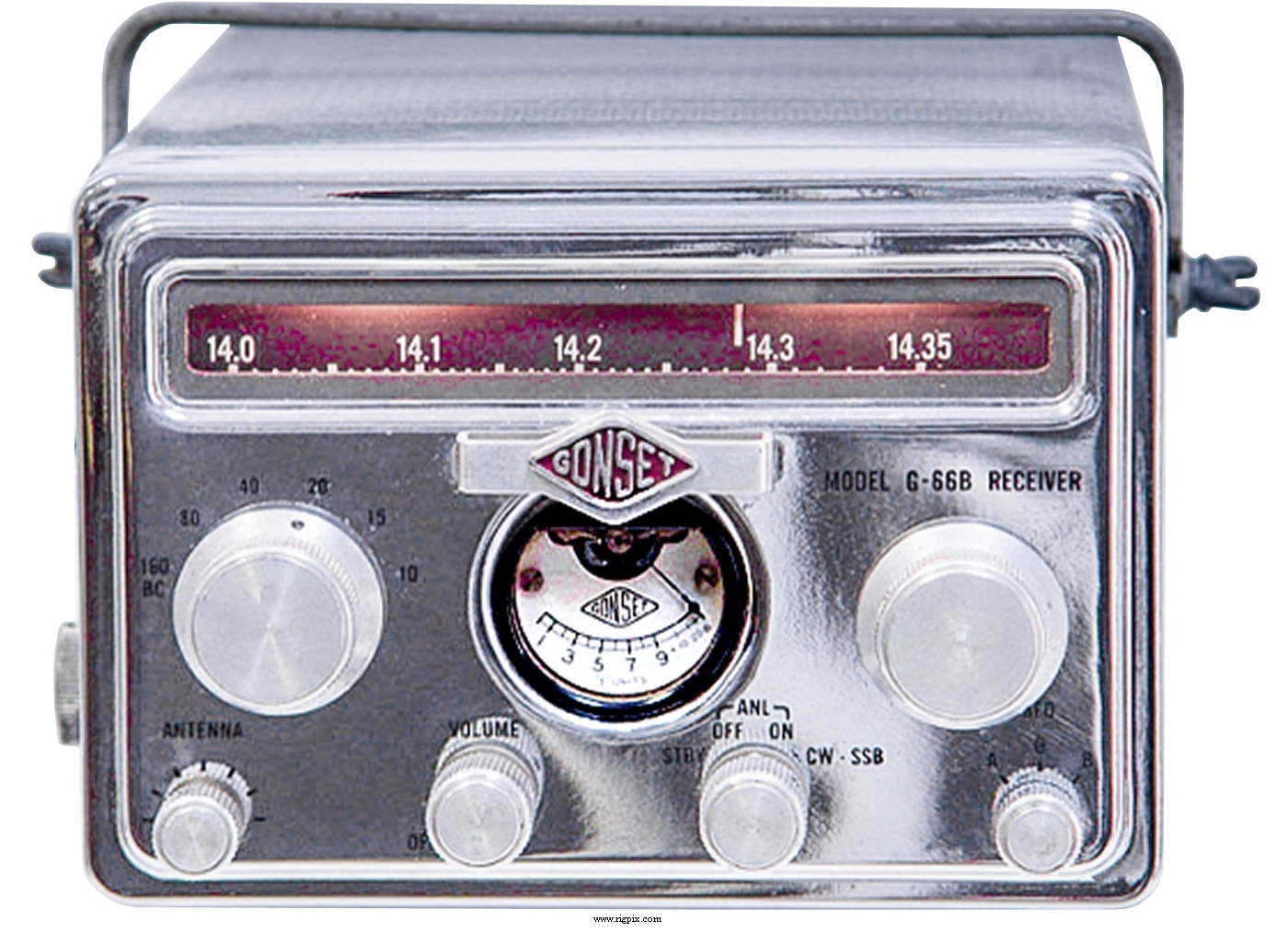

| Type: | HF receiver |
| Frequency range: |
BC + 10-160 m in six bands:
| BC/160 m: | 0.54-2.0 MHz |
| 80 m: | 3.5-4.0 MHz |
| 40 m: | 7.0-7.3 MHz |
| 20 m: | 14.0-14.35 MHz |
| 15 m: | 21.0-21.45 MHz |
| 10 m: | 28.0-29.7 MHz |
|
| Tuning steps: | Continuous |
| Frequency stability: | ? ppm |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
None
|
| Power supply: | 6 or 12 V + 200 VDC (From separate PSU) |
| Current drain / power consumption: | 3 A @ 6 V or 1.5 A @ 12 V + 80 mA @ 200 VDC |
| Antenna impedance / connector: |
BC
? ohm / ?
Ham bands
50 ohm / ?
|
| Dimensions (W*H*D): | 165*114*229 mm (6.5*4.5*9") |
| Weight: | 3.6 Kg (7.93 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 2.05 MHz
2nd IF: 265 KHz
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Selectivity: | 4 KHz (-6 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at 8% distortion / 3.2 ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1957-195x (Discontinued) |
| Additional info: |
This is the companion to the G-77 transmitter.
It's basically the same as the G-66 but with an extra IF-stage for
better performance in the higher bands
|
| Related documents: | User manual (465 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
3069
3069-6
3069-12
3098
|
AC power supply. 115 VAC. Built-in speaker
DC power supply. 6 VDC. Built-in speaker
DC power supply. 12 VDC. Built-in speaker
DC power supply. 12 VDC.
|
|
