| GENERAL |

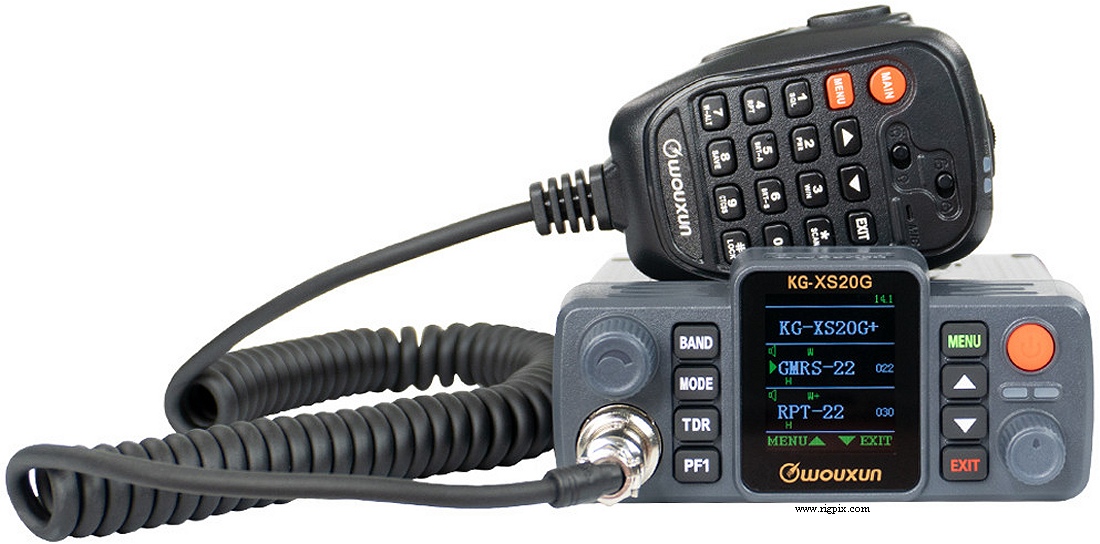

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 400-470 MHz
|
| Tuning steps: | TX: Channelized
RX: 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
7 NOAA weather channels
962 user programmable
Alpha tags
Scanning
Priority function
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 119*55*120 mm (4.68*2.16*5.04") |
| Weight: | 634 g (1.4 lb) |
| Other features: |
CTCSS/PL and DCS with tone scan. Stopwatch. Roger beep.
NOAA weather alert. Voltmeter. PC programmable. Voice guide.
IP65 waterproof. Selectable color themes. Night mode. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: |
FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel)
|
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2022-202x |
| Additional info: |
FCC ID: WVTWOUXUN25
New price, october 2025 in the US: $179.99
|
| Related documents: | User manual (2.4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
