| GENERAL |

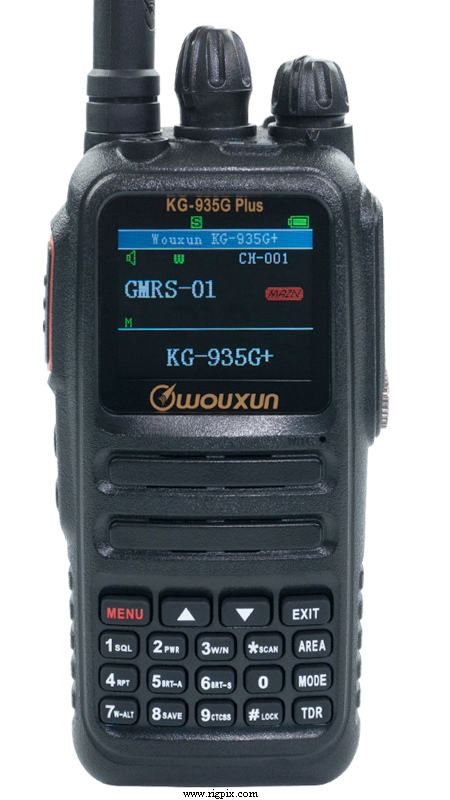

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 400-470 MHz
|
| Tuning steps: | TX: Channelized
RX: 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +40°C (-4 to +104°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
7 NOAA weather channels
999 custom
Alpha tags
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | 61*124*34 mm (2.42*4.9*1.33") |
| Weight: | 490 g (17.28 oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. IP66 waterproof.
NOAA weather alert. VOX. Voice guide. Stopwatch. LED flashlight.
Descrambler. USB-C charging. PC programmable. Dual watch.
10 display color themes. Roger beep. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne (Direct conversion)
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: |
FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel)
|
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 5.5 W | 2 W | 500 mW |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2023-202x |
| Additional info: |
FCC ID: WVTWOUXUN26
New price, october 2025 in the US: $149.99
|
| Related documents: | User manual (1.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
PCO-001
|
USB programming cable
|
|
