| GENERAL |

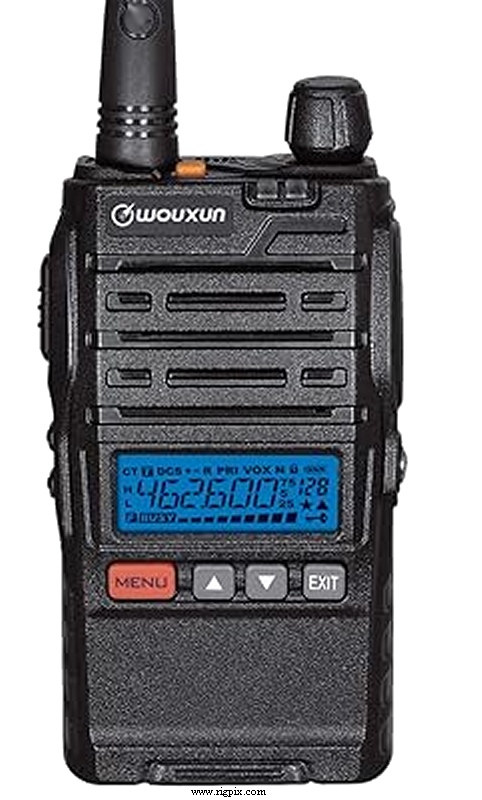

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 462 / 467 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±2.5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
Alpha tags
Scanning
Priority function
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS. VOX. Call tone. Voice guide.
Alarm function. IP55 waterproof. Three color
selectable backlite. Roger beep. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 65 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 200x-201x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (617 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ANO-005
BLO-004
CHA-003
OTH-003
OTH-005
|
Flexible antenna
Li-Ion battery pack. 7.4 V, 1700 mAh
Desk charger and AC adapter
Belt clip
Hand strap
|
|
