| GENERAL |

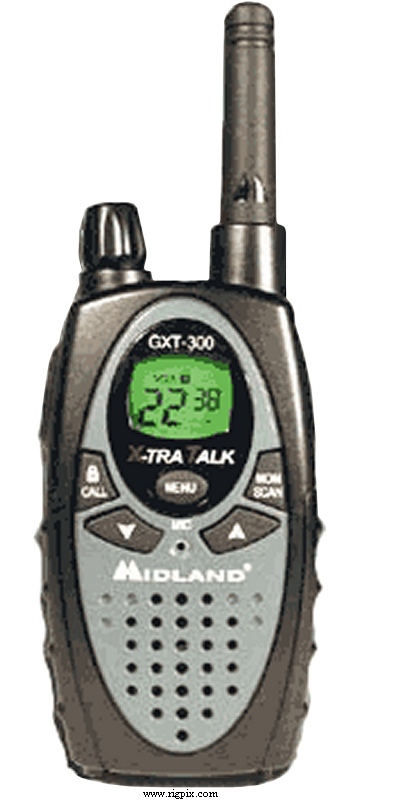

| Type: | GMRS / FRS dual standard transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 462 / 467 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Mode: | NFM |
| Channels / memory management: |
22 regular
Scanning
|
| Repeater capable: | No |
| Power supply: | 4.8-6 VDC (Four LR6 / AA batteries or NiMH pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 58*122*34 mm (2.28*4.8*1.34") |
| Weight: | 123 g (4.34 oz), without batteries |
| Other features: |
CTCSS/PL. VOX. Roger beep. 3 selectable call tones.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 300 mW at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2004-200x (Discontinued) |
| Additional info: |
New price, december 2004 in the US: $69.95 (Value Pack 1, two units)
|
| Related documents: | User manual (748 KB) |
| Modifications and fixes: | |
| Reviews: | Popular Communications: December 2004, page 42 |
| Options / Accessories: |
AVP-1
AVP-3
|
Over-the-ear headset
Dual desk charger with PSU and two NiMH battery packs
|
|
