| GENERAL |

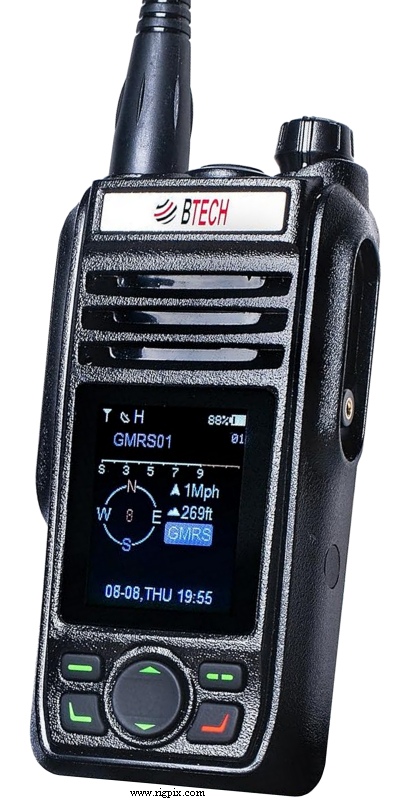

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 87-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | TX: Channelized
RX: ? KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
150 user programmable
Scanning @ 30 channels per second
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 58*125*35 mm (2.28*4.92*1.38") |
| Weight: | 270 g (9.52 oz), with battery |
| Other features: |
CTCSS/PL and DCS. Dual watch. GPS positioning, tracking and
location sharing. Compass. Bluetooth. Programmable via IOS
and Android phone apps. Speedometer. VOX. IP67 waterproof.
NOAA weather alert. Dual PTT. USB-C charging. 30 seconds audio
relay (Parrot). Off-grid short text messaging over GMRS with other
GMRS-Pro units.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM: 0.2 uV (12 dB SINAD)
NFM: 0.22 uV (12 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | 68 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM:: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (Designed in USA), 2022-202x |
| Additional info: |
New price, october 2025 in the US: $154.89
|
| Related documents: | User manual (5.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BP-26
BS-22
|
Li-Ion battery pack. 7.4 V, 2600 mAh
Bluetooth speaker-microphone
|
|
