| GENERAL |

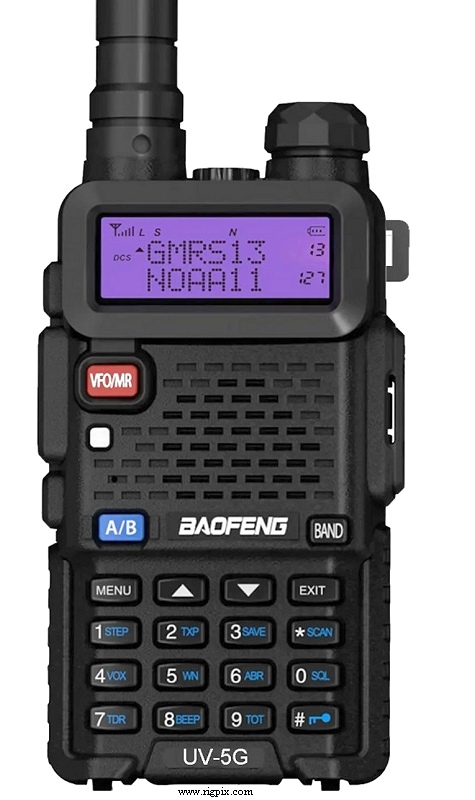

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | TX: Channelized
RX: 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +50°C (-4 to +122°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
11 NOAA weather channel
98 user programmable
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: 75-380 mA
TX: Less than 1.4 A |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | 58*110*32 mm (2.28*4.33*1.26") |
| Weight: | 214 g (7.54 oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. Dual watch.
Tone call. Scrambler. LED flashlight.Roger beep. VOX.
Voice guide.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne (Direct conversion)
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 55 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 5% distortion / 16 ohm |
| External speaker connector: | TRS "Subminijack" (2.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM:: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / TRS "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2021-202x (Discontinued) |
| Additional info: |
New price, october 2025 in the US: $24.99
FCC ID: 2AN62-UV5G
|
| Related documents: | User manual (22.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
BL-5
|
Li-Ion battery pack. 7.4 V, 1800 mAh / 13.32 Wh
|
|
