Eddystone EC10 MkII

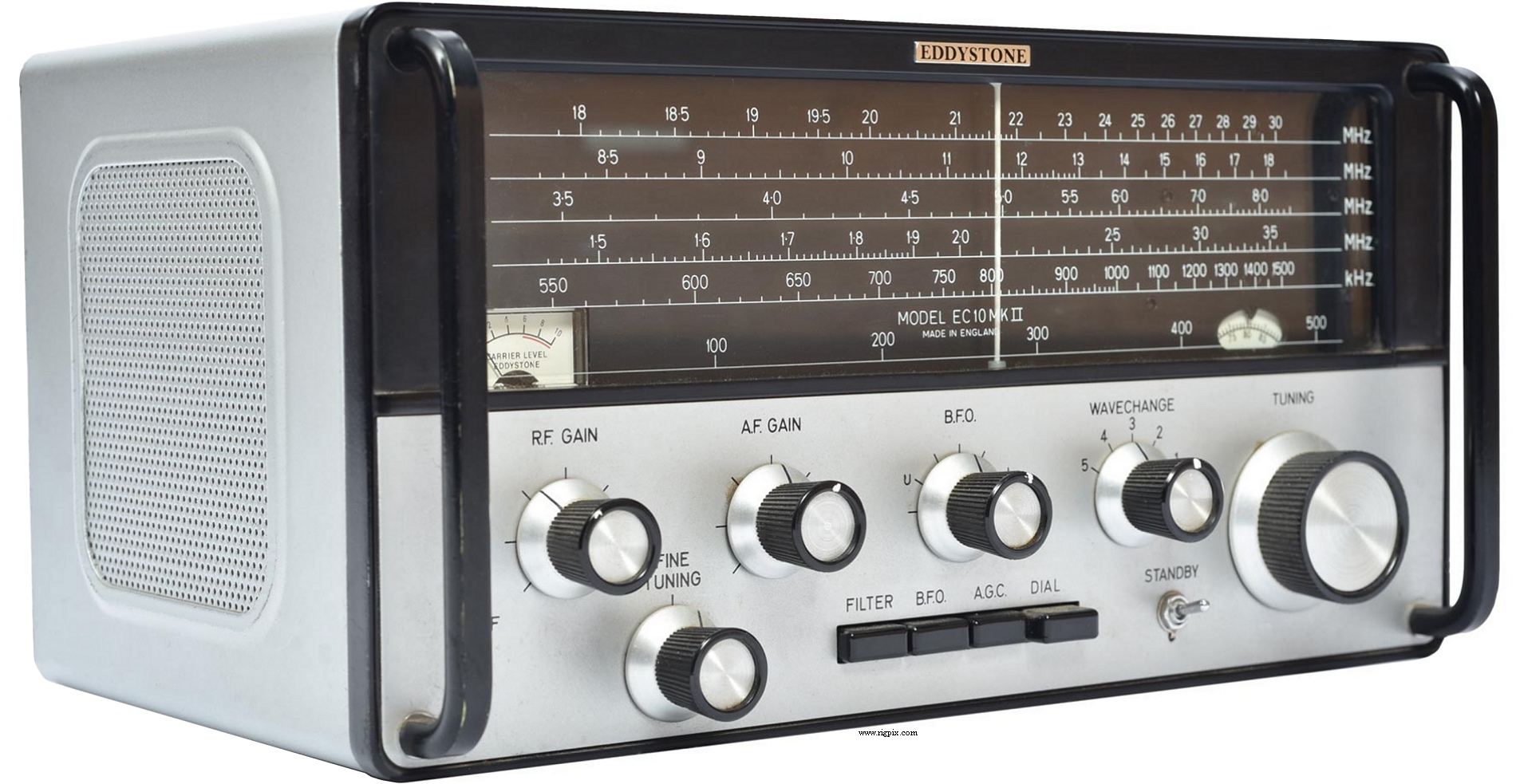

A picture of Eddystone EC10 MkII

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.55-30 MHz in five bands
Band 1:   18-30 MHz
Band 2:   8.5-18 MHz
Band 3:   3.5-8.5 MHz
Band 4:   1.5-3.5 MHz
Band 5:   0.55-1.5 MHz
Tuning steps:Continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: None
Power supply:9 VDC (Internal batteries) or mains option
Current drain / power consumption:Max 250 mA
Antenna impedance / connector:? ohm / ?
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 465 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:800 mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:England, 1967-1977 (Discontinued)
Additional info: Basically an updated EC10 with added S-meter and fine tuning.
Headphone jack moved to the rear panel.
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Eddystone EC10 MkII
