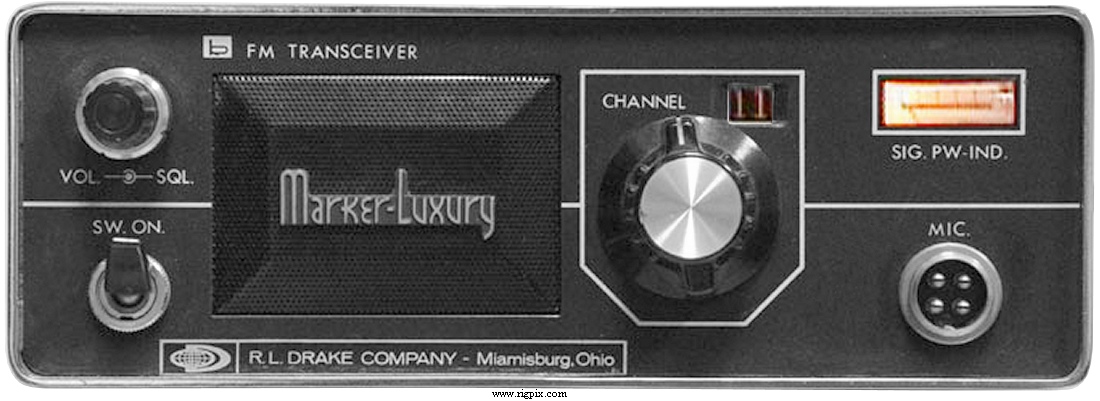

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 144-148 MHz
RX: 144-148 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.001% (No temperature reference) |
| Mode: | FM |
| Channels / memory management: |
12 regular
XTAL controlled
|
| Repeater shift / offset: | According to XTALs |
| Power supply: |
13.5 VDC ±10%
or mains: 117 / 220 VAC (Depending on market)
12-pin Jones connector
|
| Current drain / power consumption: | RX: 500 mA @ 13.5 VDC
TX: Max 4 A @ 13.5 VDC |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 200*70*260 mm (7.88*2.75*10.25") |
| Weight: | 3.74 Kg (8.25 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB quieting) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 20 KHz (-6 dB)
60 KHz (-80 dB) |
| Image rejection: | 85 dB |
| AF output power / speaker: | 500 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 10 W |
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | ±5 KHz (Adjustable to max ±15 KHz) |
| Spurious emissions: | Better than -80 dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Kuranishi Keisokuki), 1971-1972 (Discontinued) |
| Reset procedure: | - |
| Additional info: |
Tube hybrid.
New price 1971 in the US: $329.95 (With XTALs for two channels)
|
| Related documents: |
User manual (6.3 MB)
RF final: One 6360 twin tetrode
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
