| GENERAL |

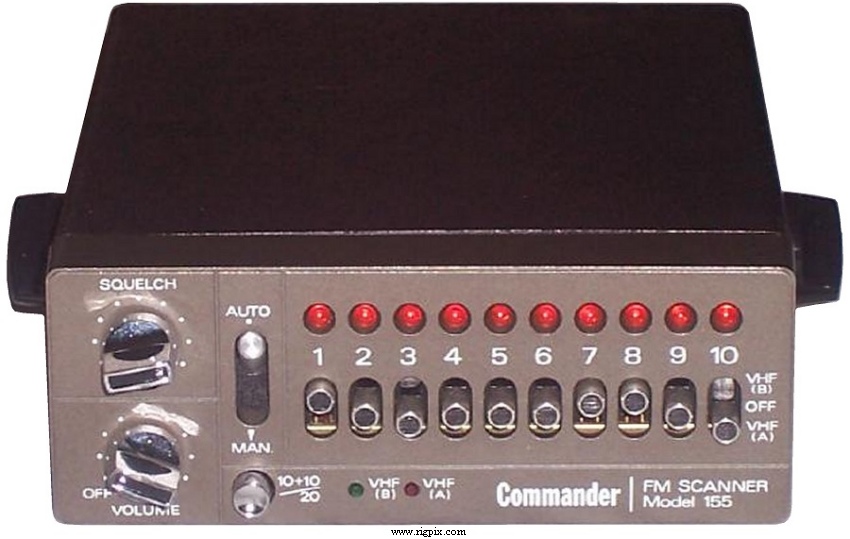

| Type: | VHF receiver/scanner |
| Frequency range: |
Early production
70-90 / 164-174 MHz
Later production
75-88 / 143-175 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ?% |
| Mode: | FM |
| Channels / memory management: |
20 regular @ 7 to 26 channels per second (adjustable)
XTAL controlled
|
| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 90*50*140 mm (3.54*1.97*5.51") |
| Weight: | 960 g (2.12 lb), without mobile bracket |
| Other features: |
Built-in 88-108 MHz notch filter for improved low band
reception (later production). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filters: Two Murata CFW455E
|
| Sensitivity: | 0.5 uV (No SINAD reference) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1982-198x (Discontinued) |
| Additional info: |
Main PCB: SB-4H by ? (Early production)
New price 1982 in Sweden: SEK 695:- (Early)
New price 1983 in Sweden: SEK 768:- (Later)
New price 1984 in Sweden: SEK 768:- (Later)
|
| Related documents: |
AF amplifier: LM380N
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
