Collins HF-8054A

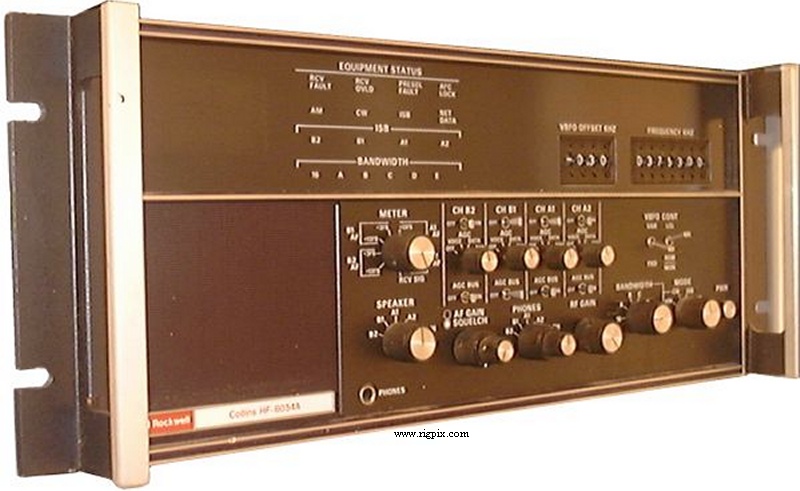

A picture of Collins HF-8054A

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.25-30 MHz
Tuning steps:10 Hz
Frequency stability:? ppm
Mode:AM / SSB / ISB / CW (FM option)
Channels / memory management:
Power supply:Mains
Current drain / power consumption:Max 80 W
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):483*222*520 mm (19.02*8.74*20.47")
Weight:20 Kg (44.09 lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Canada, 1982-1986 (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
