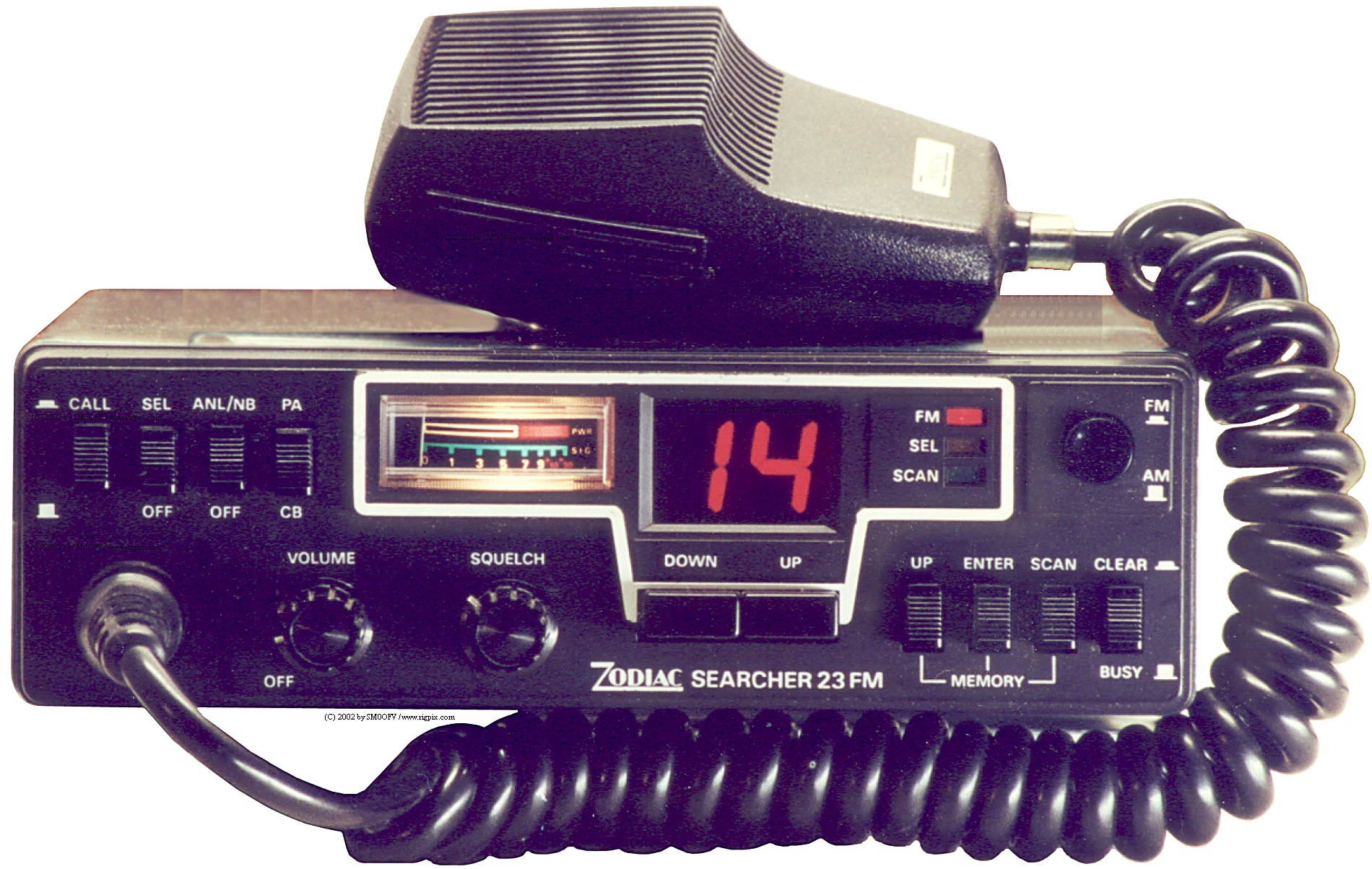

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.225 MHz |
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM / FM |
| Frequency control: | PLL (MSM5807RS) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Barrel connector, center positive) |
| Current drain / power consumption: | RX: Max 350 mA
TX: Max 1.3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*55*210 mm (7.09*2.16*8.27") |
| Weight: | 2 Kg (4.41 lb), with mike and mounting bracket |
| Other features: | PA. ANL/NB. Scanning. Selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata Cerafil SFR455H
|
| Sensitivity: | |
| Selectivity: | 8 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | 2-prong DIN |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 3.5 W |
| Modulation system: | |
| FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1981-1983 (Discontinued) |
| Main PCB: | 111122 by ? |
| Sub PCBs: |
111123 - Scanning and pushbutton board
111124 - LED channel display and indicators board
111125 - Memory supercap/PSU board
|
| Additional info: |
New price 1982 in Sweden: SEK 1945:-
New price 1983 in Sweden: SEK 2070:-
|
| Related documents: |
PLL: MSM5807
RF driver: 2SC2036
RF final: 2SC2166
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
