Zodiac P-3006

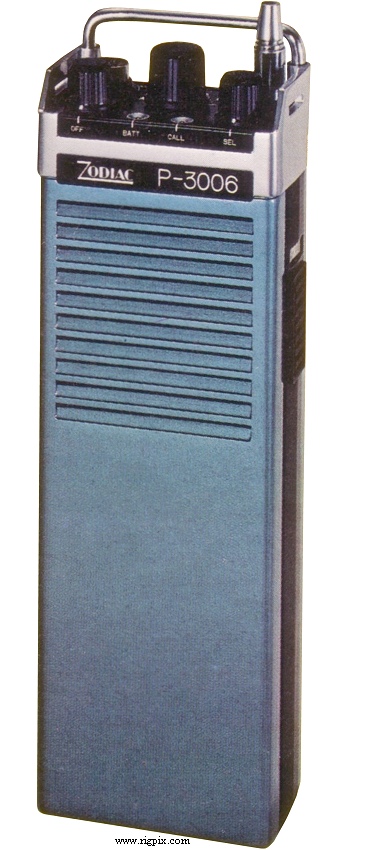

A picture of Zodiac P-3006

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz (26-32 MHz)
Channels/tuning steps:6
Mode:AM
Frequency control:Two XTALs per channel
Frequency stability:?%
Power supply:12 VDC
Current drain/power consumption:RX: ? mA
TX: ? mA
Antenna impedance/connector:- / Fixed telescopic whip
Dimensions (W*H*D):78*240*49 mm (3.07*9.45*1.93")
Weight:1.15 Kg (2.54 lb)
Other features:




RECEIVER SECTION
Receiver system:Single conversion superheterodyne
IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:~2 W (3 W input)
Modulation system:
FM deviation:No FM
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / ?-pin
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:197x-198x (Discontinued)
Main PCB:
Additional info:New price 1979 in Sweden: SEK 1030:-
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options/Accessories:
MH-01
MHA-01
MOS-01
VOX-01
Headset with microphone
Mobile holder with DC cable and antenna jack
Speaker-microphone with selcall button
VOX unit
