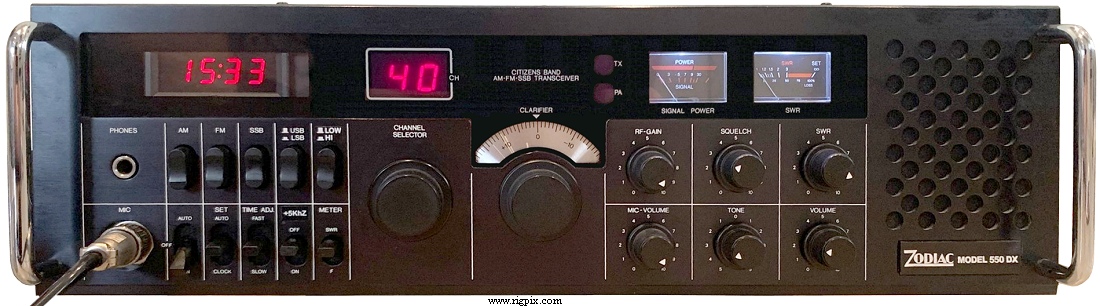

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
26.965-27.855 MHz in two bands:
| Lo: | 26.965-27.405 MHz |
| Hi: | 27.415-27.855 MHz |
|
| Channels / tuning steps: | 80 (2*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | 0.005% (No temperature reference) |
| Clarifier or Delta tune: | ? Hz |
| Power supply: | Mains: 220 VAC (Fixed power cord)
or 13.8 VDC (Screw terminals) |
| Current drain / power consumption: | RX: ? A @ 13.8 VDC
TX: ? A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 440*140*235 mm (17.32*5.51*9.25") |
| Weight: | 5.1 Kg (11.24 lb) |
| Other features: |
PA. +5 KHz switch. 24 hr clock. SWR meter.
External selcall connector.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
FM: 0.5 uV (10 dB S+N/N
SSB: ? uV
|
| Squelch sensitivity: | 1 uV (Threshold)
1000 uV (Tight) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3.5 W at ?% distortion / 4 ohm |
| External speaker connector: | - |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
FM: 4 W
SSB: 12 W
|
| Modulation system: | |
| Max AM modulation (Factory set): | 95% |
| Max FM deviation (Factory set): | ±1.8 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-1987 (Discontinued) |
| Main PCB: |
By Suruga
|
| Sub PCBs: | |
| Additional info: |
This DX version is very rare. Apparently, only a small run of
fifteen units was produced for the Italian market.
|
| Related documents: | |
| Known markets and approvals: |
Italy
No approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
