| GENERAL |

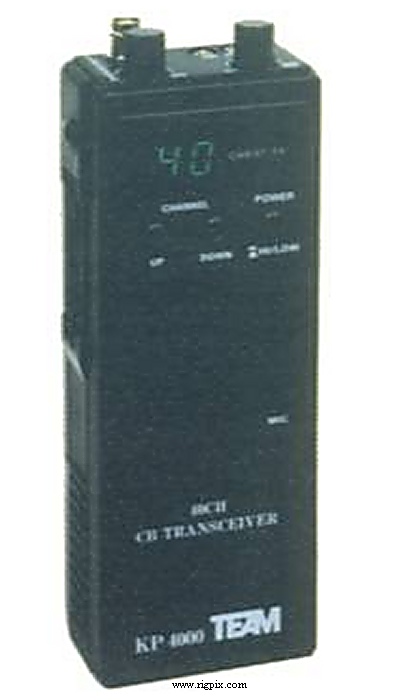

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels/tuning steps: | 40 |
| Mode: | FM |
| Frequency control: | PLL |
| Frequency stability: | ±?% |
| Power supply: | 12-15 VDC (10*LR6/AA batteries) or max 15 VDC external |
| Current drain/power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance/connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 71*200*60 mm (2.8*7.87*2.36") |
| Weight: | 430 g (15.17 oz), without batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | ? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz |
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Hi: 4 W
Lo: 1 W |
| Modulation system: | |
| Max FM deviation: | ±? KHz |
| Spurious emissions: | Less than -? dB |
| Microphone impedance/connector: | ? ohm / ?-pin |
| Microphone input sensitivity: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 199x-199x (Discontinued) |
| Main PCB: | |
| Additional info: | New price 1996 in Sweden: SEK 1380:- |
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options/Accessories: |
|
