Svera 324 AM/FM DW

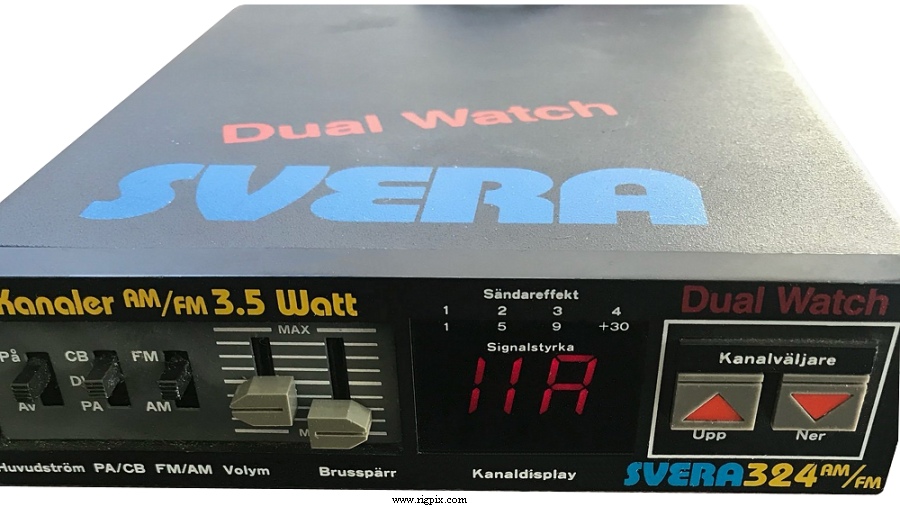

A picture of Svera 324 AM/FM DW

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:24 (1-23 + 11A)
Mode:AM / FM
Frequency control:PLL (C5121)
Frequency stability:0.005%
Clarifier or Delta tune:No
Power supply:13.2 VDC (Fixed power cord)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):130*33*180 mm (5.12*1.3*7.09")
Weight:1.6 Kg (3.53 lb)
Other features:Dual watch. PA. Emergency tone call (967.5 and 1340 Hz)




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: CFU455HT or LF-H6S 77
Sensitivity: AM: 0.5 uV (10 dB S+N/N)
FM: ? uV (12 dB SINAD)
Selectivity:6 KHz (-6 dB)
Image rejection:60 dB
AF output power / speaker:3 W at ?% distortion / 8 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:3.5 W (TFS B:93C compliant)
Modulation system:
Max FM deviation (Factory set):±1.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin DIN (180°)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:198x-198x (Discontinued)
Main PCB:Unmarked
Sub PCBs: 9-2 - Front panel board
Unmarked - Emergency tone call board
Additional info:
Related documents: PLL: C5121
AF amp: KIA7217AP
RF driver: 2SC2314
RF final: 2SC2078
Sams Photofact #:None
