SBE Land-Command (LCBS-8)

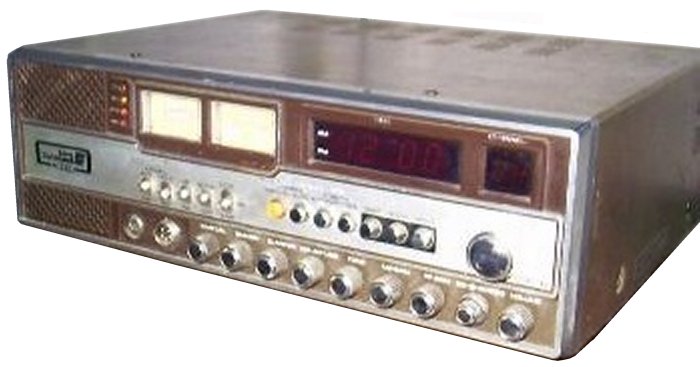

A picture of SBE Land-Command (LCBS-8)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM / SSB
Frequency control:PLL (MB8719)
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:Mains: 115 VAC (Fixed power cord)
or 13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? W @ mains
TX: Less than 100 W @ mains
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features: PA. NL/NB. Ch 9 scanning. 12 hr alarm clock. AWI.
SWR meter.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:197x-19xx (Discontinued)
Main PCB:By Uniden
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
