| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |

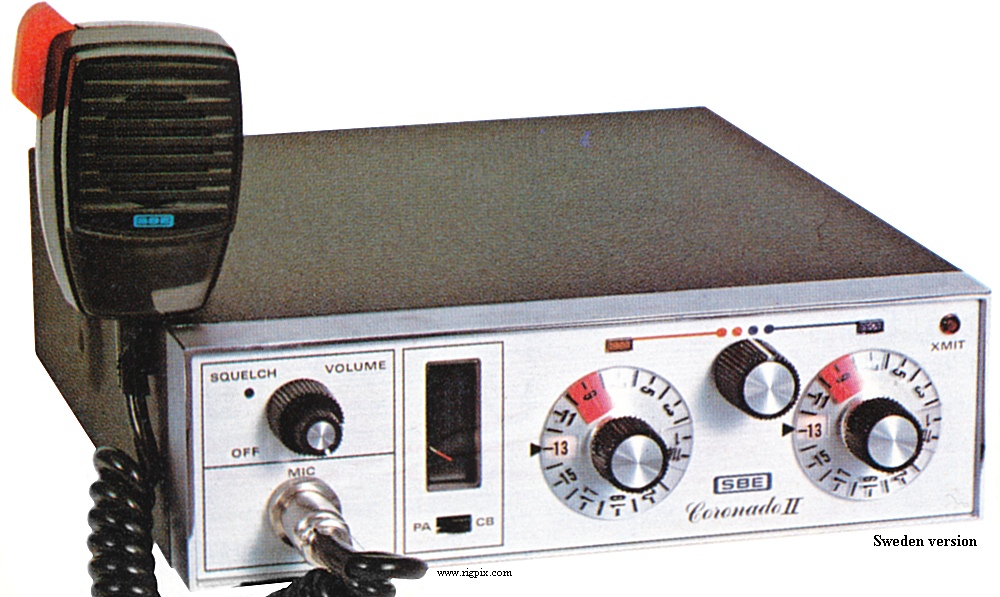

26.965-27.225 MHz (Sweden)

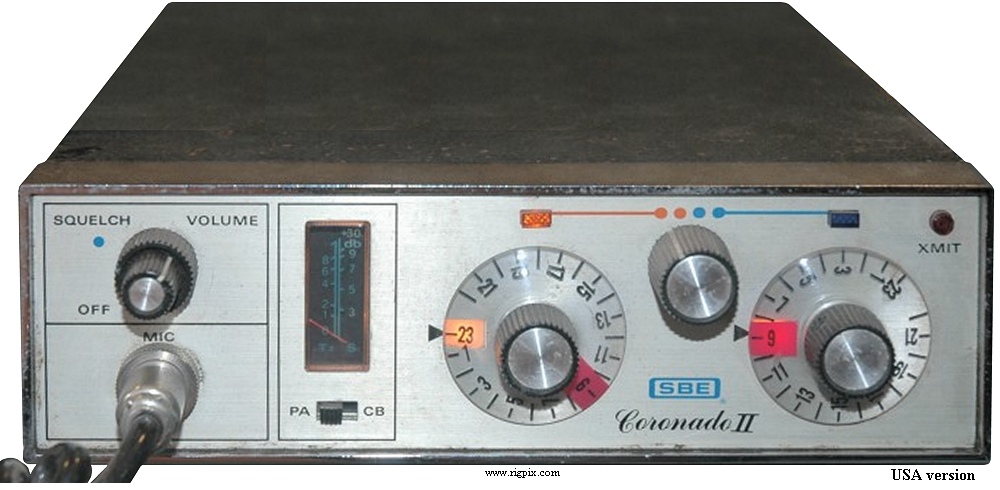

26.965-27.255 MHz (USA)
|
| Channels / tuning steps: |
1-22 + 11A (Sweden)
23 (USA)
|
| Mode: | AM |
| Frequency control: | XTAL-matrix |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: Max 400 mA
TX: Max 1.7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 212*63*239 mm (8.35*2.48*9.41") |
| Weight: | 2.84 Kg (6.26 lb), without mobile bracket |
| Other features: | PA. Early dual watch function. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 20 KHz (-65 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.2 W at ?% distortion / ? ohm |
| External speaker connector: | 1/4" jack |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1973-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1975 in Sweden: SEK 1530:-
|
| Related documents: | |
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
USA
FCC Data: ?
|
| Sams Photofact #: | CB-48 (September 1973) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
