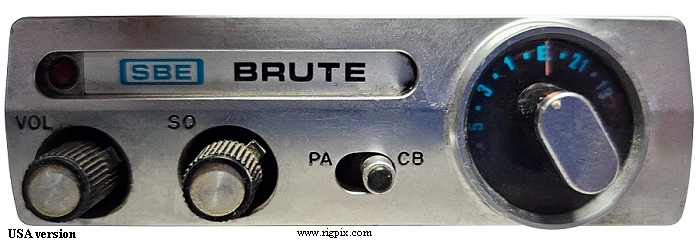

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
Sweden
26.965-27.225 MHz
USA
26.965-27.255 MHz
|
| Channels / tuning steps: |
Sweden: 23 (1-22 + 11A)
USA: 23 (1-23) NB! Channel E on the dial is channel 23
|
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ±0.003% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 11.7-15.9 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: 200-350 mA
TX: Max 1.4 A |

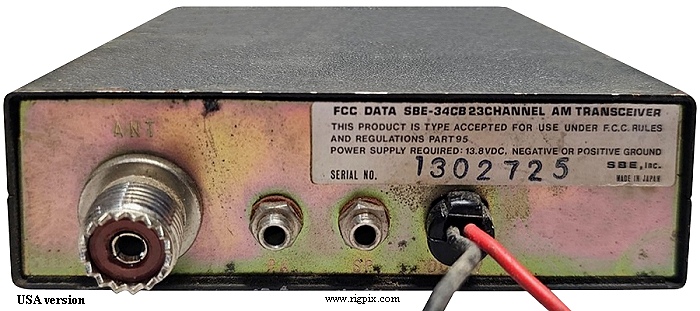

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*60*240 mm (6.75*2.5*9.45") |
| Weight: | 1 Kg (2.2 lb) |
| Other features: | PA. External selcall option (Sweden only). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 0.7 uV (Threshold)
More than 200 uV (Tight) |
| Selectivity: | 10 KHz (-6 dB)
40 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | 95-100% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1976-1977 (Discontinued) |
| Main PCB: |
M-349 by ?
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (6.6 MB)
|
| Known markets and approvals: |
Sweden
Televerket
USA
FCC Data: SBE-34CB
|

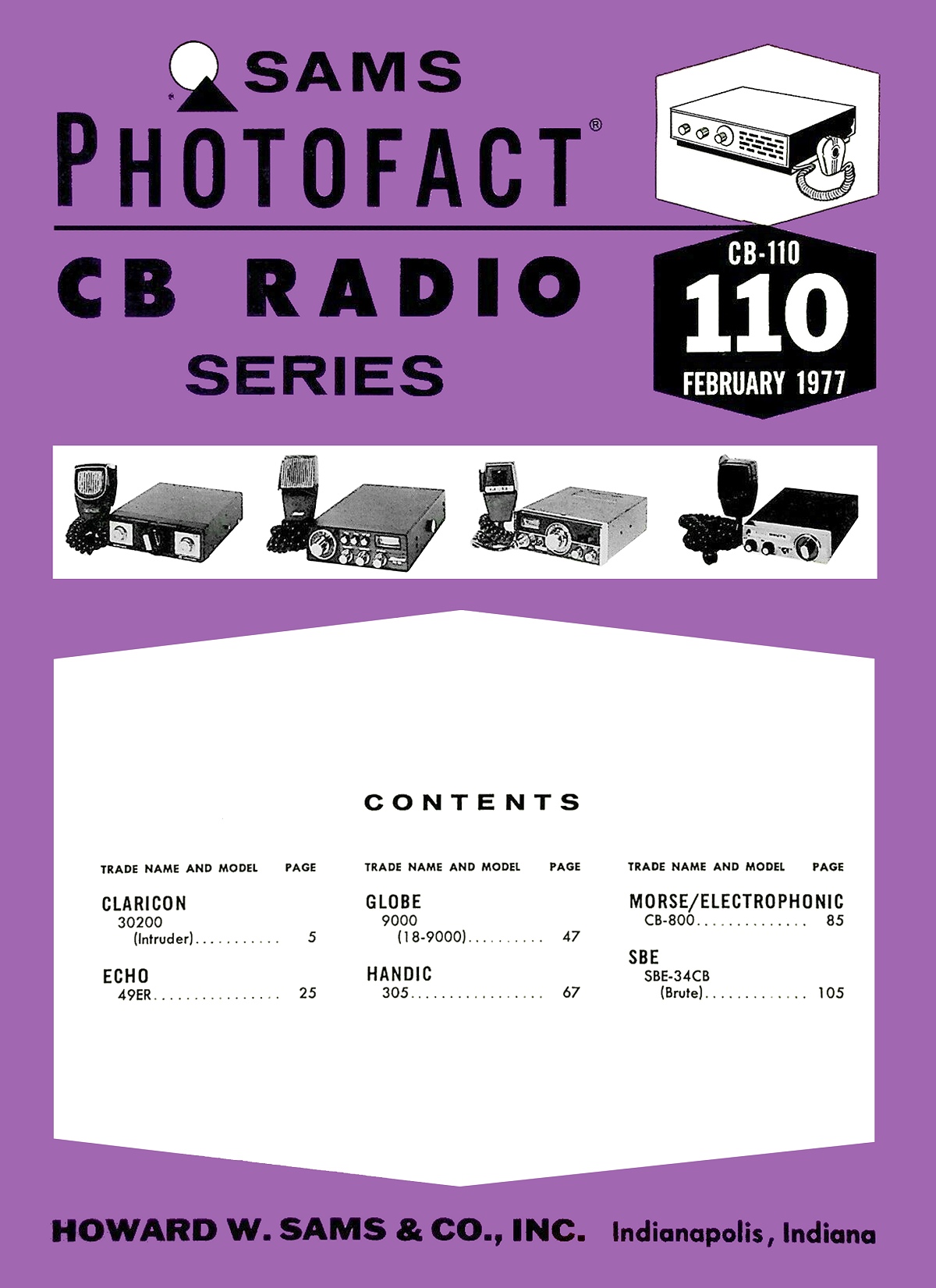

| Sams Photofact #: | CB-110 (February 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
