| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | RX: Analog/continuous with five presets
TX: 23 |
| Mode: | AM |
| Frequency control: | RX: VFO
TX: One XTAL per channel |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 117 VAC |
| Current drain / power consumption: | RX: Max 50 W
TX: Max 23 W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Receiver: ? mm (?")
Transmitter: ? mm (?") |
| Weight: | Receiver: ? Kg (? lb)
Transmitter: ? Kg (? lb) |
| Other features: | Local/distance switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.1 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 3-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1962-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |

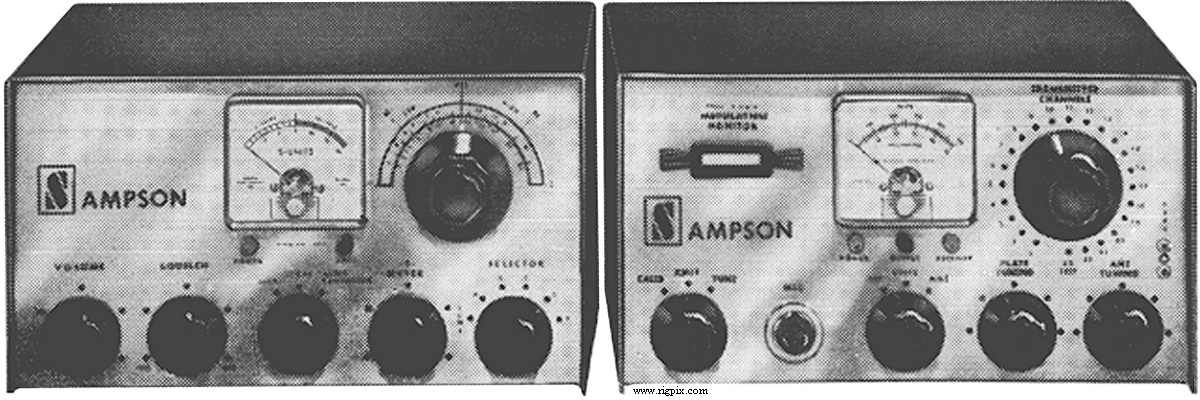

A working CB1A system actually consists of the R101A receiver,
the T110A transmitter and the R102 speaker plus accessories.
|
| Related documents: | |
| Known markets and approvals: |
USA
FCC: Compliant
|
| Sams Photofact #: | CB-5 (March 1964) |
| Modifications and fixes: | |
| Reviews: | |
