| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (MB8719 or MB8734) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±? KHz |

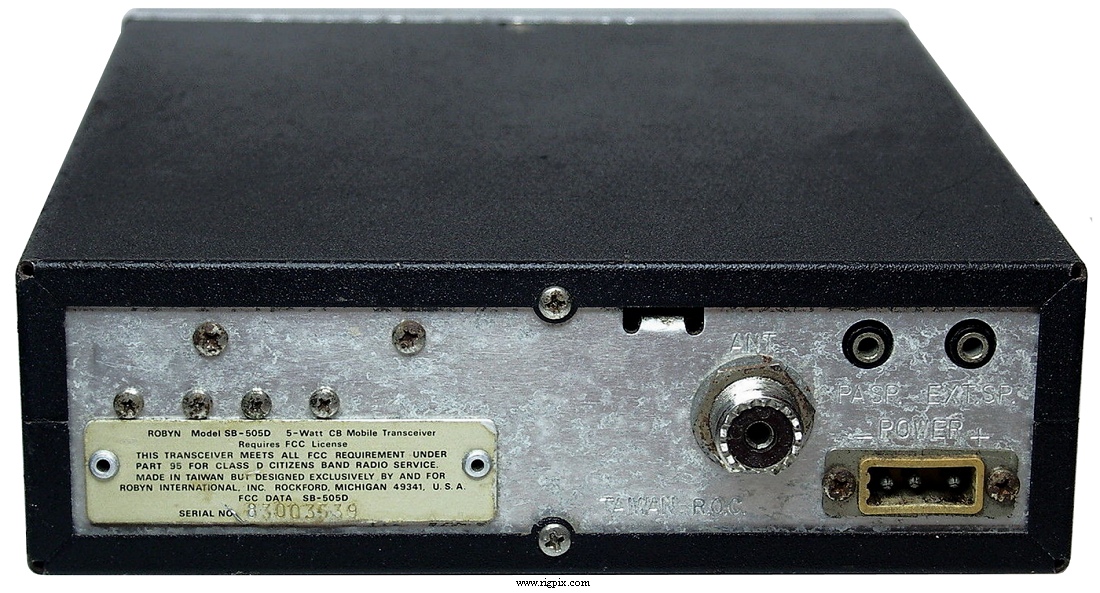

| Power supply: | 13.8 VDC (3-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. NB. Dimmer. Tone control. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 7.8 MHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 197x-197x (Discontinued) |
| Main PCB: | PC-??? by Uniden |
| Sub PCBs: | |
| Additional info: |
The clarifier is located on the original microphone.

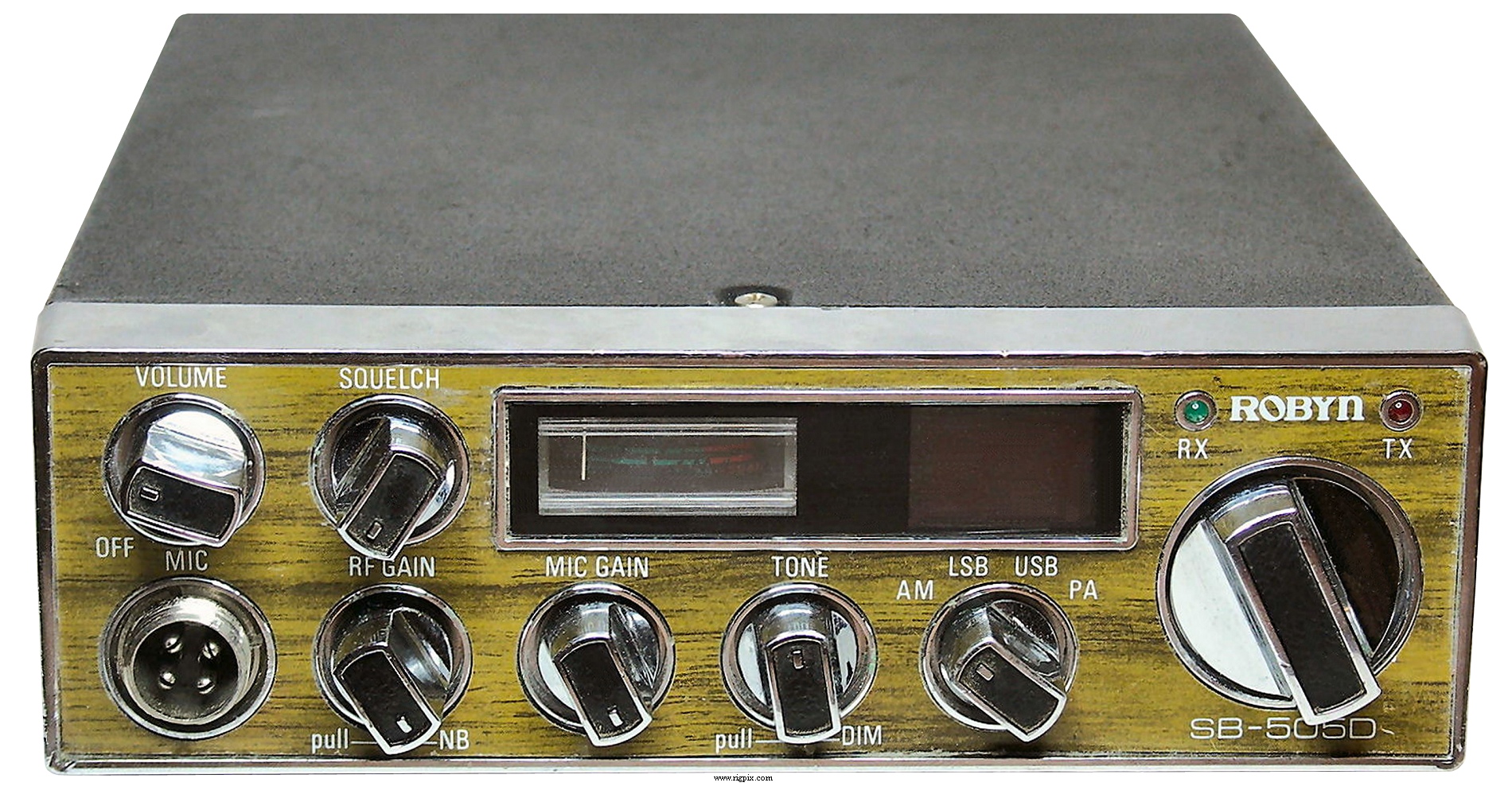

This transceiver was available with silver or woodgrain faceplate.
|
| Related documents: | |
| Sams Photofact #: | CB-247 (February 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
