| GENERAL |

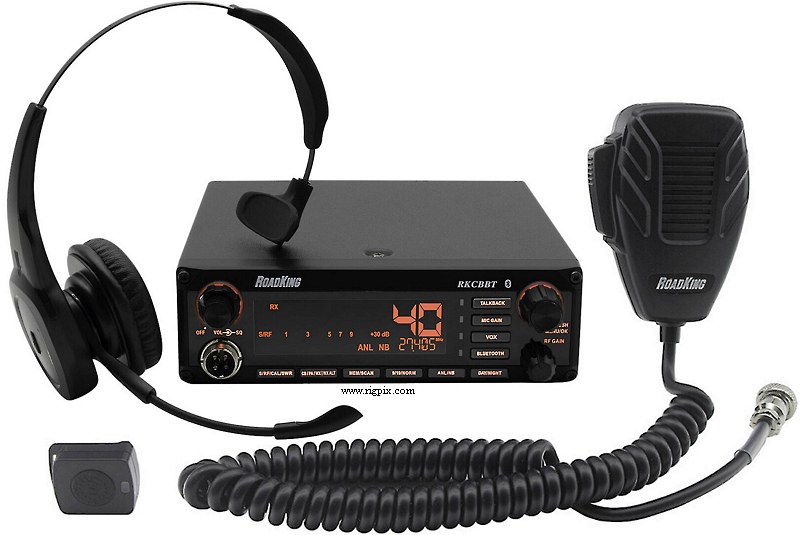

| Type: | Citizen band transceiver |
| Frequency range: | CB: 26.965-27.405 MHz
WX: 161.650-163-275 MHz (RX only) |
| Channels / tuning steps: | CB: 40
WX: 10 (RX only) |
| Mode: | CB: AM
WX: FM (RX only) |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (3-pin connector) |
| Current drain / power consumption: | RX: 650 mA (Squelched)
TX: Max 2.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 184*57*190 mm (7.25*2.25*7.5") |
| Weight: | ? Kg (2.2 lb) |
| Other features: |
PA. ANL/NB. Talkback. VOX. SWR meter. Scanning. Channel 9 / 19 button.
Bluetooth (Headset included).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Selectivity: | 55 dB (Adjacent channel) |
| Image rejection: | 65 dB |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | 3.5 mm, 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Vietnam, 2020-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | FCC ID: AMWUT427Z |
| Related documents: | User manual (13.1 MB) |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
