Realistic TRC-456 "CB-Fone 40" (21-1523)

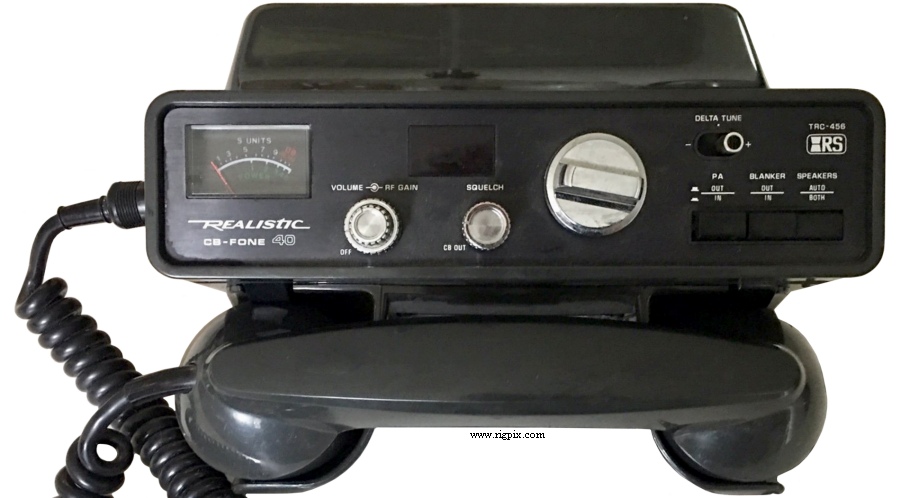

A picture of Realistic TRC-456 CB-Fone 40 (21-1523)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL (uPD861)
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:13.8 VDC (Fixed power cord)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. NB. Delta tune.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin DIN (180°)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-198x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:CB-209 (August 1978)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Realistic TRC-456 CB-Fone 40
