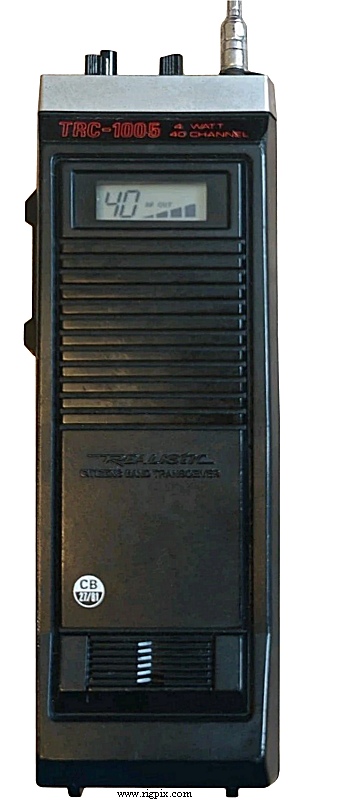

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK CB 27/81) |
| Mode: | FM |
| Frequency control: | PLL (LC7137) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA alkaline or ten NiCd batteries)
or 12 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: Less than 400 mA
TX: Less than 1 A |
| Antenna impedance / connector: | - / Fixed telescopic whip
50 ohm / RCA-Phono |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: | Battery/RF meter (No S-meter!). Charging jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Selectivity: | 8 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 400 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.8 KHz |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1983-198x (Discontinued) |
| Main PCB: |
GE-83B-3814 by GRE
Double sided with non plated-through holes and through-hole components
|
| Sub PCBs: |
GE-83D-3??? - LCD display board
GE-83O-3786 - Channel selector board
|
| Additional info: |
New price 1983 in the UK: £139.95
|
| Related documents: |
PLL: LC7137
FM-IF: MC3357P
AF amplifier: AN374P
|
| Known markets and approvals: |
United Kingdom
CB 27/81
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
