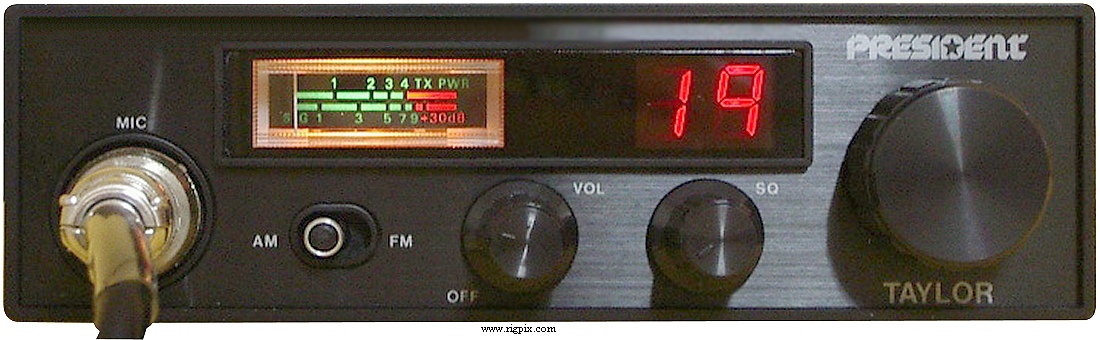

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | 0.002% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: 500-800 mA
TX: Less than 1.7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*45*150 mm (5.91*1.77*5.91") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
FM: 1 uV (20 dB S+N//N)
|
| Squelch sensitivity: | |
| Selectivity: | 7 KHz (-6 dB)
10 KHz (-60 dB) |
| Image rejection: | 75 dB |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 1 W
FM: 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Better than -54 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | 1 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 199x-200x (Discontinued) |
| Main PCB: |
PA-280AC by Uniden
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
Europe
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
