| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Export mode
24.715-30.105 MHz

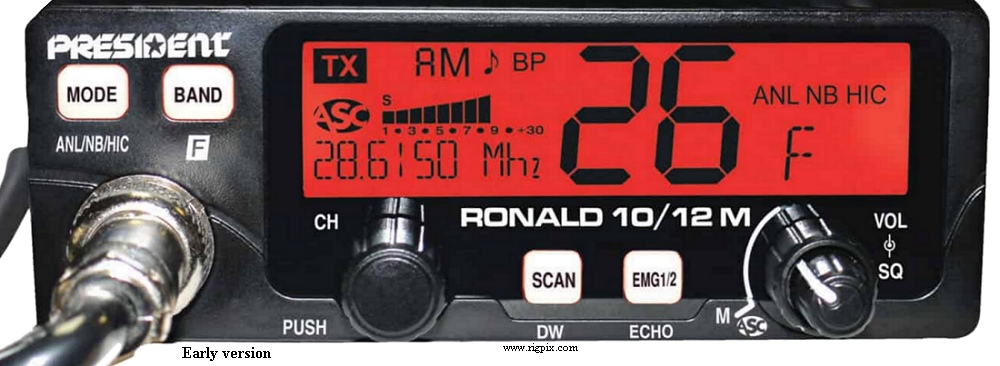

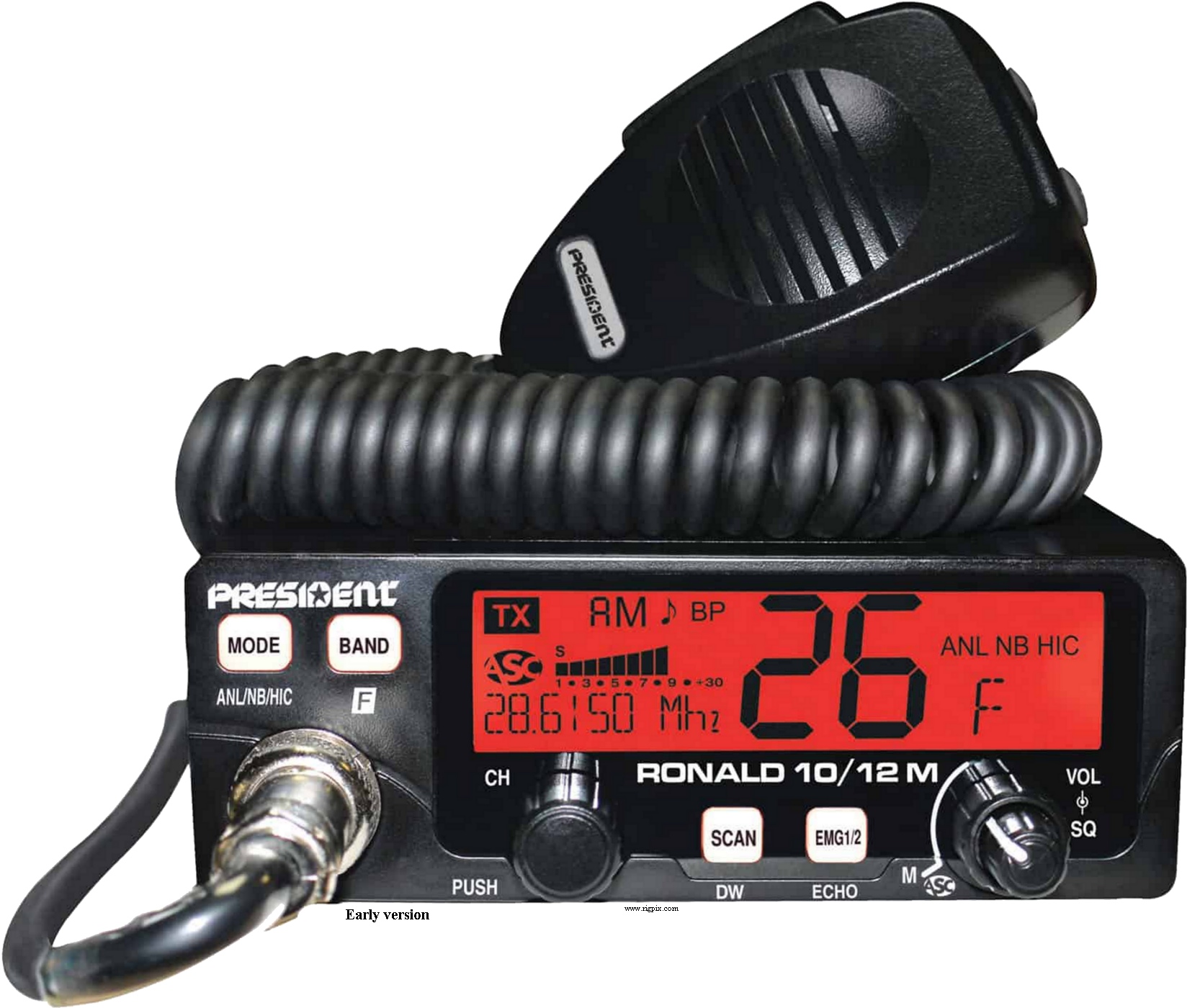

10/12 m mode (Early version)
24.890-24.990 / 28.000-29.700 MHz

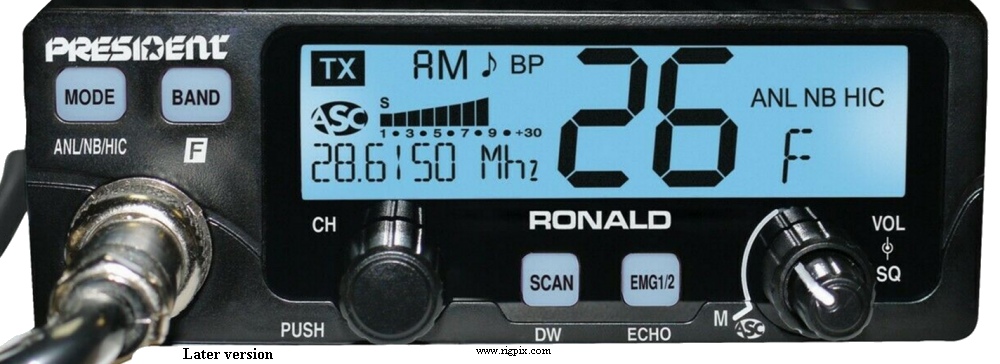

10 m mode (Later version)
28.000-29.700 MHz
|
| Channels / tuning steps: |
Export mode: 480
VFO: 100 / 10 / 1 KHz and 100 Hz
|
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: Max 500 mA
TX: Max 7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 125*45*175 mm (4.92*1.77*6.89") |
| Weight: | 900 g (1.98 lb) |
| Other features: |
PA. ANL/NB. SWR meter. Tone hi-cut. 7 selectable display
colors. Dual watch. Roger beep. ASC. Talkback. Echo. Scanning.
Programmable emergency button. Channel and frequency display.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM: 0.7 uV (20 dB SINAD)
FM: 0.35 uV (20 dB SINAD)
|
| Squelch sensitivity: | Less than 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 13 W carrier/dead key (50 W PEP)
FM: 35 W
The output power is adjustable
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | 3 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (Early), 2018-2019 (Discontinued)
China (Later), 2020-202x |
| Main PCB: |
PP802_1/4 by ?
Double sided with mostly SMD components
|
| Sub PCBs: |
PP802_2/4 - Front panel board
PP802_3/4 - ? board
PP802_4/4 - ? board
|
| Additional info: | |
| Related documents: |
User manual (2.2 MB, Multilanguage)
RF driver: IRF520
RF finals: Two IRF520
|
| Known markets and approvals: |
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
