| GENERAL |
| Type: | Citizen band / Freeband / Export transceiver |
Frequency range
depending on version: |
80 channel version
26.965-27.855 MHz

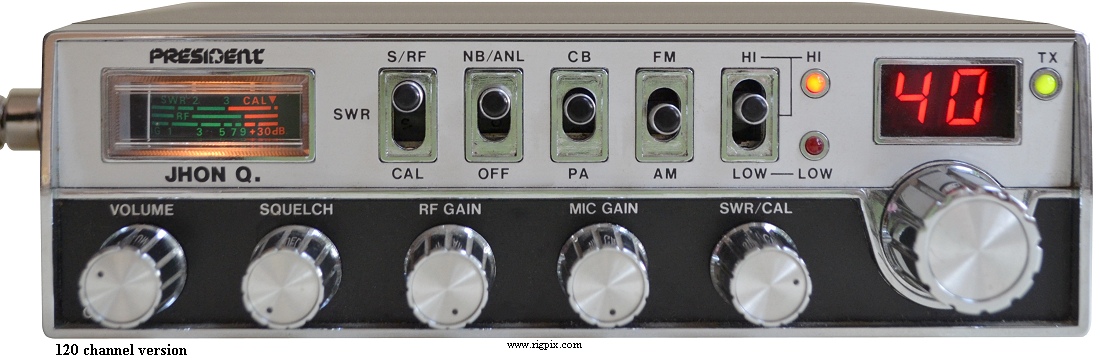

120 channel version
26.?-2?.? MHz
|
| Channels / tuning steps: | 80 or 120 |
| Mode: | AM / FM |
| Frequency control: | PLL (uPD2816) |
| Frequency stability: | 0.002% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (7.25*2.2*8.75") |
| Weight: | ? Kg (4.6 lb) |
| Other features: |
PA. ANL/NB. SWR meter. Mic gain. RF gain.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
FM: ? uV (12 dB SINAD)
|
| Squelch sensitivity: | 0.5 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 7 KHz (-6 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | 100% |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 19xx-19xx (Discontinued) |
| Main PCB: |
PC-424AC by Uniden
Single sided with through-hole components
|
| Sub PCBs: |
PC-870AA - Channel selector board
And others...
|
| Additional info: | |
| Related documents: |
User manual, 80 channels (3.8 MB)
PLL: uPD2816
|
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
