| GENERAL |

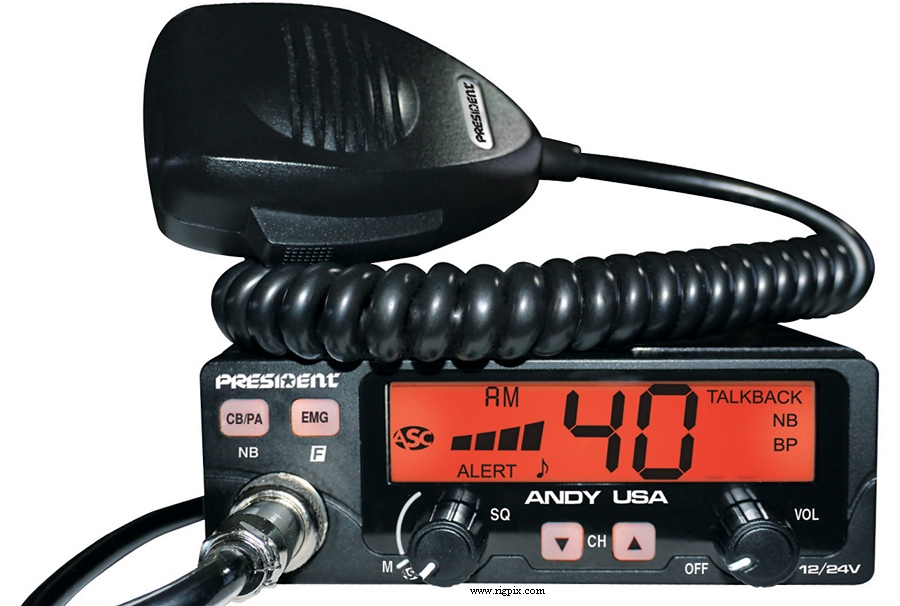

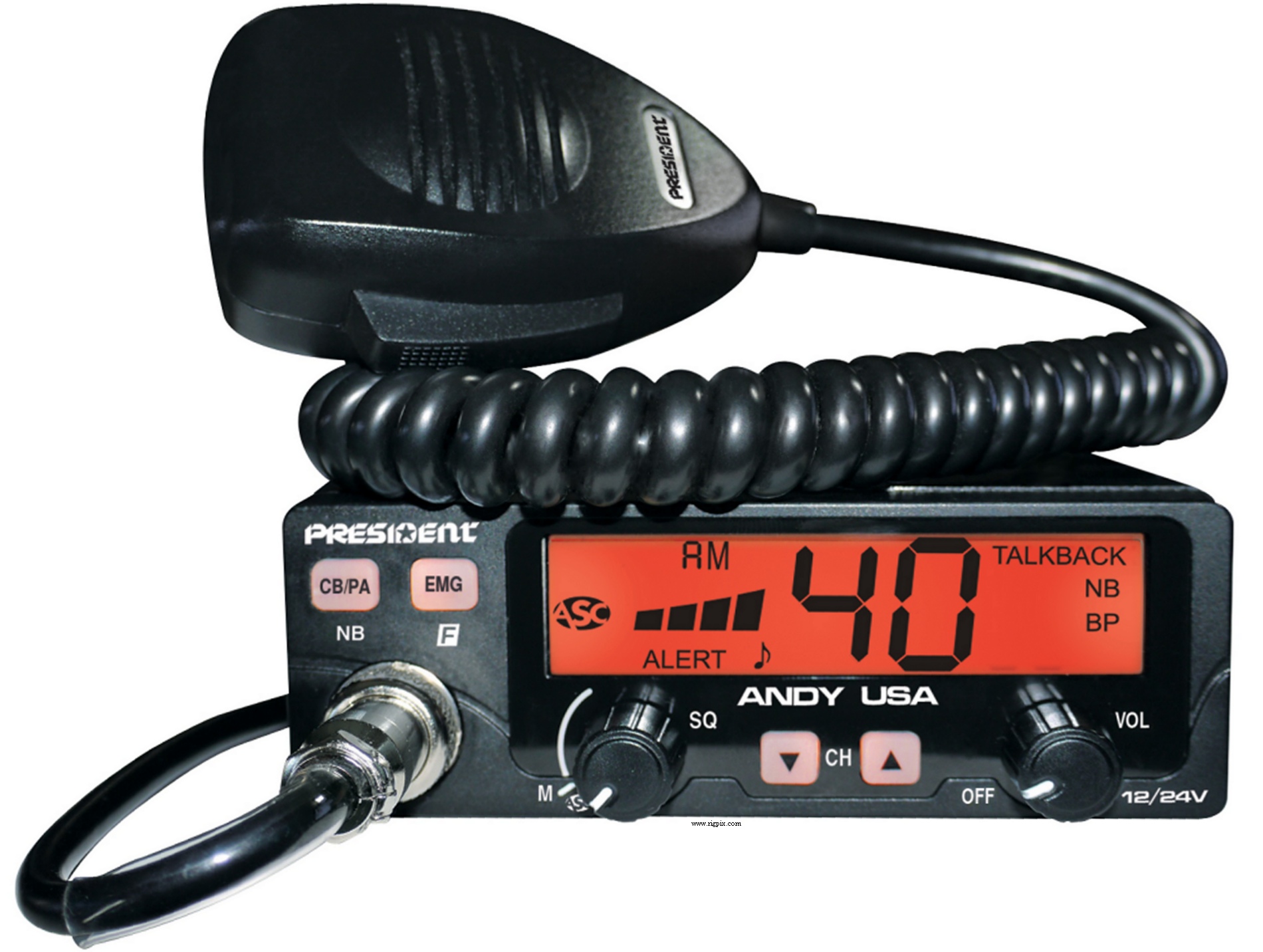

| Type: | Citizen band transceiver |
| Frequency range: |
CB: 26.965-27.405 MHz
WX: 162.400-162.550 MHz (RX only)
|
| Channels / tuning steps: | CB: 40
WX: 7 |
| Mode: | CB: AM
WX: FM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 / 24-28 VDC (Fixed power cord) |
| Current drain / power consumption: |
RX: 160-500 mA @ 13.8 VDC - 50-250 mA @ 27.6 VDC
TX: 1.8 A @ 13.8 VDC - 900 mA @ 27.6 VDC
|
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 125*45*175 mm (4.92*1.77*6.89") |
| Weight: | 900 g (1.98 lb) |
| Other features: |
PA. ANL/NB. Talkback. Programmable EMG button. ASC.
NOAA weather alert. 7 selectable display colors.
Scanning. Roger beep.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: | 0.6 uV (20 dB SINAD) |
| Squelch sensitivity: | Less than 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dBc |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | 3 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2017-2020 (Discontinued) |
| Main PCB: |
PP801_1/2 by ?
Double sided with mostly SMD components
|
| Sub PCBs: |
PP801_2/2 - Front panel board
|
| Additional info: | |
| Related documents: |
User manual (1.5 MB, Multilanguage)
RF final: FQP13N10
|
| Known markets and approvals: |
USA
FCC ID: 2AEOCPC201
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
