| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 6 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | 0.005% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: 100 mA (No signal)
TX: Max 1.3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 120*35*159 mm (4.72*1.38*6.26") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz - Ceramic filter: Murata CFU455H
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Squelch sensitivity: | 1 uV (Threshold) |
| Selectivity: | 6 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | No |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 6-pin DIN |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Kanda Tsushin Kogyo Co.Ltd.), 1972-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |

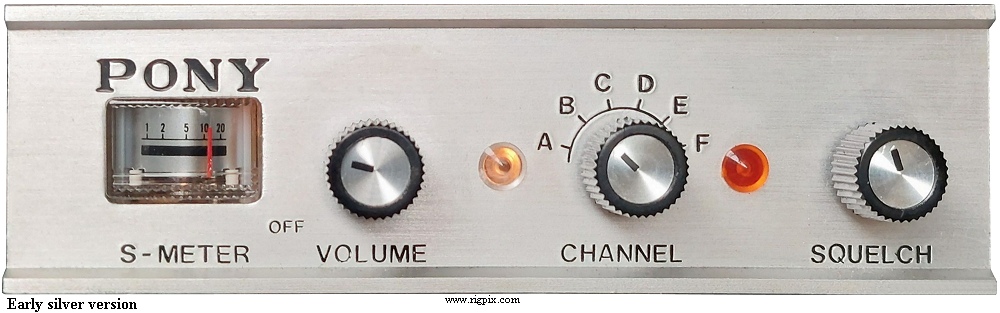

The silver version was also sold as Fieldmaster TR-16M and
Sommerkamp TS-727G.
New price 1974 in Sweden: SEK 485:- (Silver version)
New price 1977 in Sweden: SEK 485:- (Silver version)
New price 1978 in Sweden: SEK 485:- (Silver version)

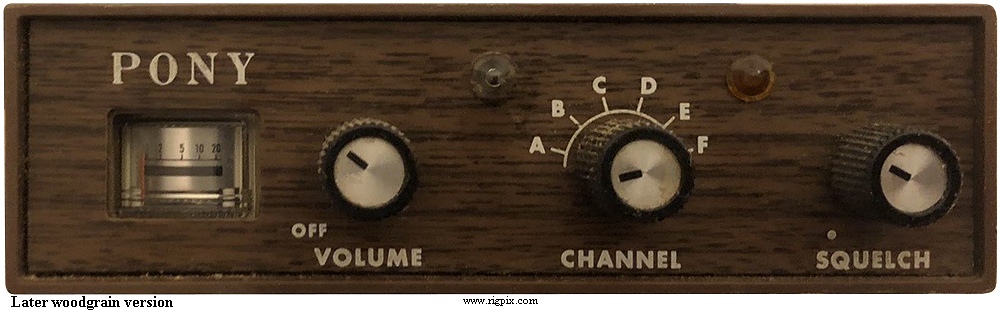

New price 1979 in Sweden: SEK 485:- (Woodgrain version)
New price 1980 in Sweden: SEK 485:- (Woodgrain version)
New price 1981 in Sweden: SEK 485:- (Woodgrain version)
|
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | CQ Elettronica (Italy): January 1973, page 36 |
| Options / Accessories: |
|
