Pearce-Simpson Super Panther 18 (By Gladding Corporation)

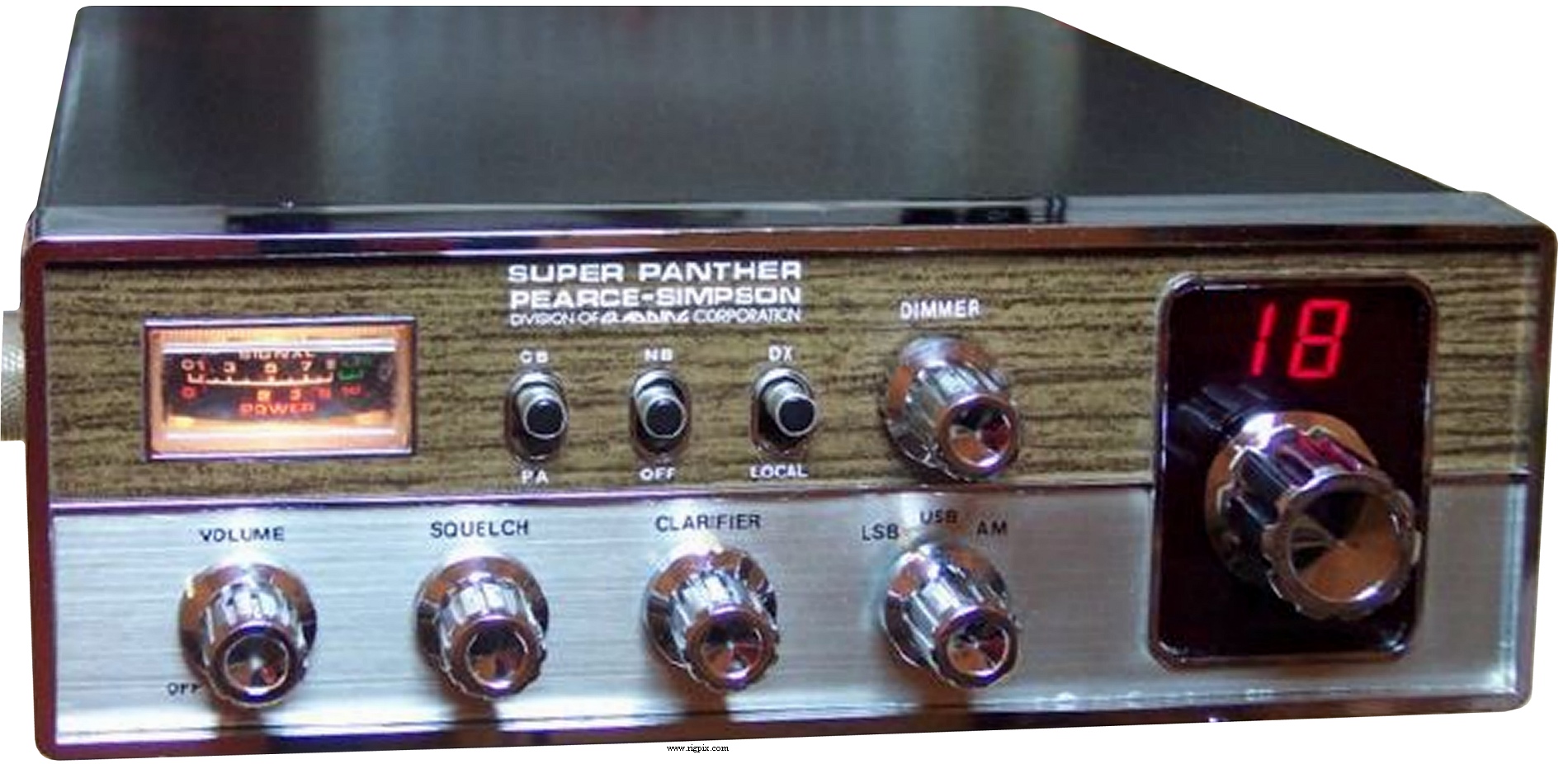

A picture of Pearce-Simpson Super Panther 18 (By Gladding Corporation)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:27.015-27.225 MHz
Channels/tuning steps:18 (Old Australian bandplan)
Mode:AM / SSB
Frequency control:PLL (PLL02A)
Frequency stability:?%
Power supply:13.8 VDC (2-pin connector)
Current drain/power consumption:RX: ? mA
TX: ? A
Antenna impedance/connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. NB. Local/DX switch. Dimmer.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne (SSB)
1st IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity: AM: 1 uV (10 dB S/N)
SSB: 0.3 uV (10 dB S/N)
Selectivity: AM: 6 KHz (-6 dB)
SSB: 2 KHz (-6 dB)
Image rejection:
AF output power/speaker:3 W at 10% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W (PEP)
Modulation system: AM: High level class B
SSB: Double balanced modulator with crystal lattice filter
Max FM deviation:No FM
Spurious emissions:Less than -60 dB
Microphone impedance/connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:PTBM048AOX by Cybernet Electronics Corporation
Sub PCBs: PTLD010COX - LED display board
PTSW020COX - Channel selector board
Additional info:
Related documents: User manual (1.2 MB)
Schematic diagram (1.8 MB)
AF amplifier: TA7205P
PLL: PLL02A
RF driver: 2SC2166
RF final: 2SC1969
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options/Accessories:
- -
