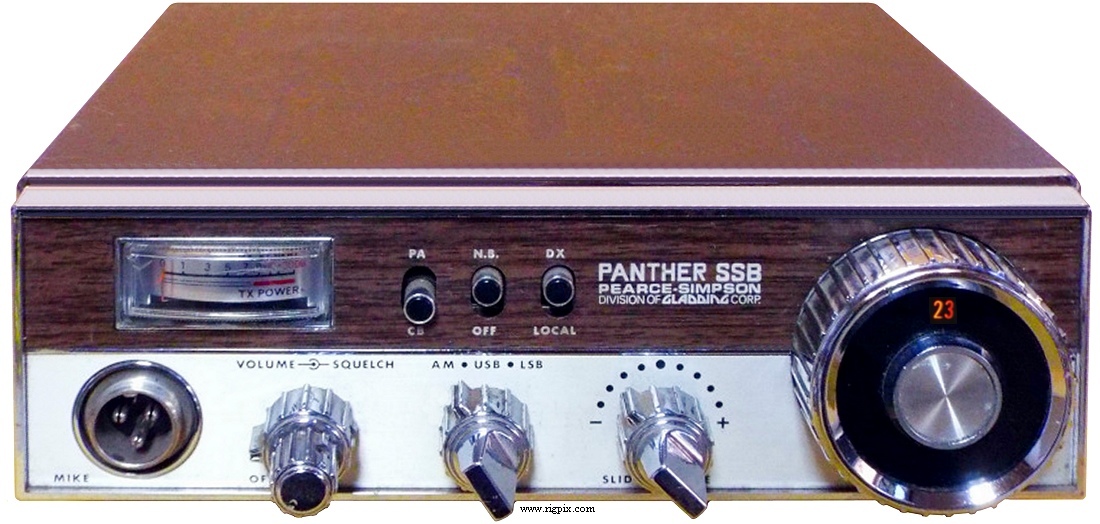

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix (14 XTALs) |
| Frequency stability: | 0.001% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | ±600 Hz "Slide-O-Tune" |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 52 ohm / SO-239 |
| Dimensions (W*H*D): | 190*64*267 mm (7.5*2.5*10.5") |
| Weight: | 3.2 Kg (7 lb) |
| Other features: |
PA. NB. Local/DX switch.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 7.8 MHz
Double conversion superheterodyne (AM)
1st IF: 7.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.8 uV (10 dB S+N/N)
SSB: 0.3 uV (10 dB S+N/N)
|
| Squelch sensitivity: | 0.5 uV (Threshold)
1 mV (Tight) |
| Selectivity: |
AM
10 KHz (-6 dB)
20 KHz (-50 dB)
SSB
2 KHz (-6 dB)
5.5 KHz (-50 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3.5 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 3.5 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 3-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1973-1975 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, november 1973 in the US: $299.95
New price, january 1975 in the US: $349.95
|
| Related documents: |
User manual (3.1 MB)
Audio amplifier: Two 2SC1096
RF driver: 2SC1306
RF final: 2SC1307
|
| Known markets and approvals: |
USA
FCC: Type accepted Part 95
|

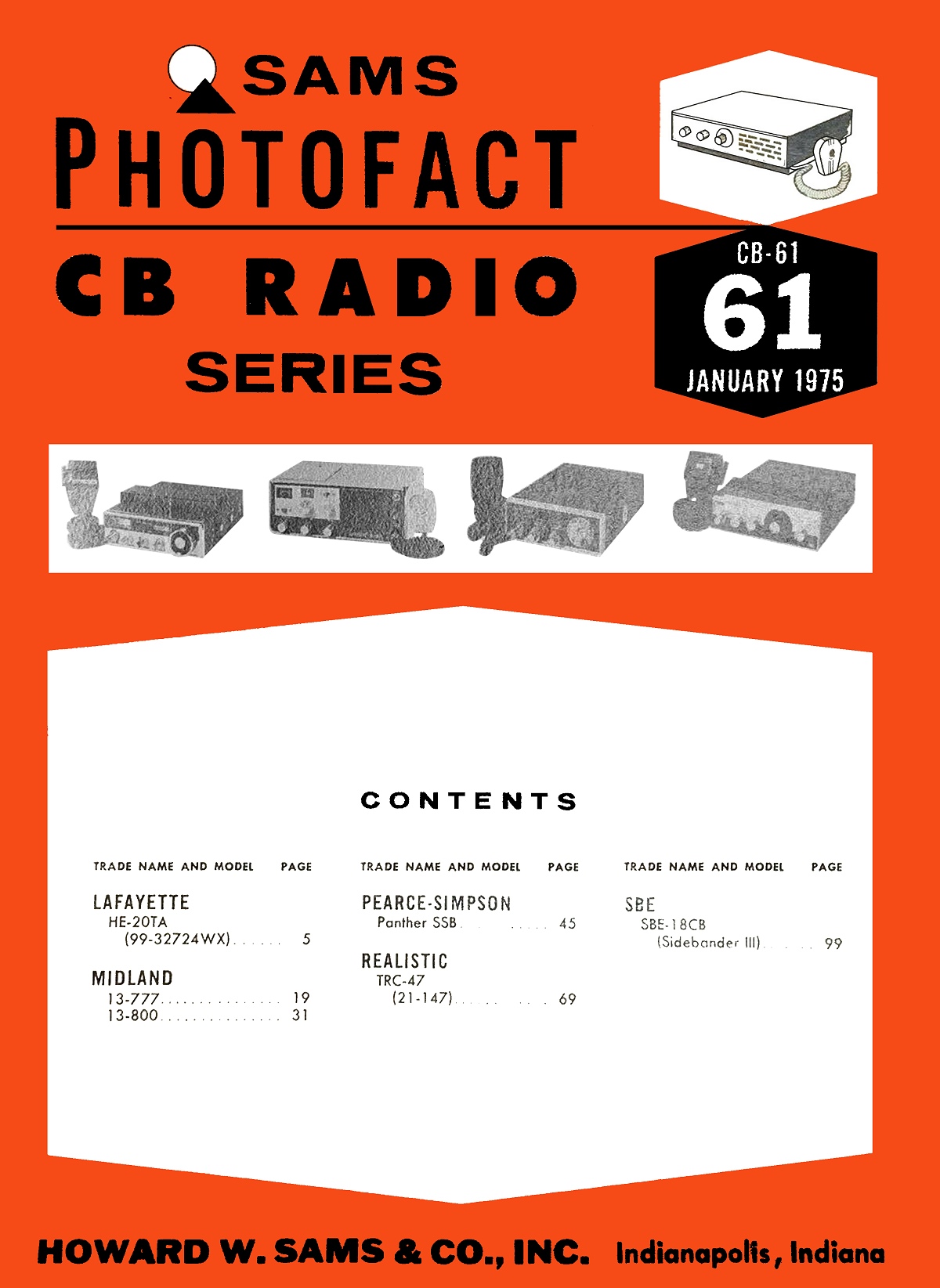

| Sams Photofact #: | CB-61 (January 1975) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
