| GENERAL |

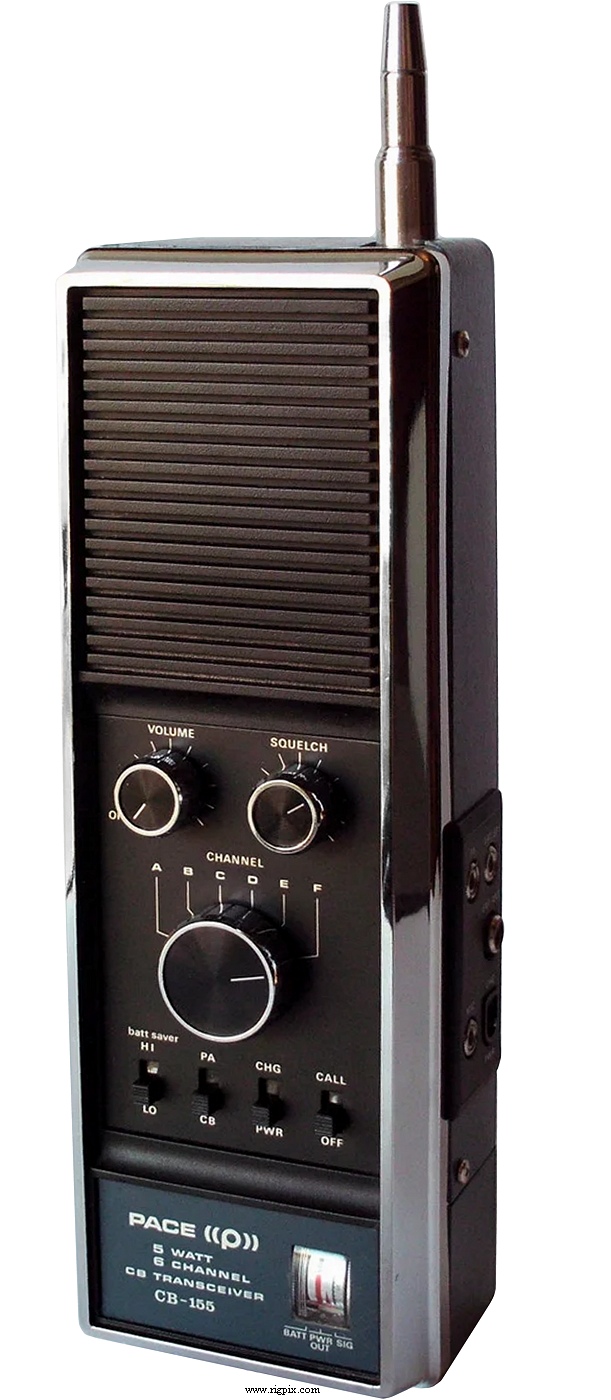

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 6 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Power supply: | 12 VDC (Eight R6/AA alkaline or ten NiCd cells)
or 12 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | Telescopic whip
50 ohm / RCA-Phono |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb), without batteries |
| Other features: | PA. NiCd charging circuit. Call tone. S/RF/Battery meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: ~3.5 W (5 W input)
Low: ~700 mW (1 W input)
|
| Modulation system: | |
| Max FM deviation: | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance / connector: | ? ohm / TS "Minijack" (3.5 mm) |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | None |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
USA
FCC: Type acceptance No. CB155
|
| Sams Photofact #: | CB-85 (April 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
