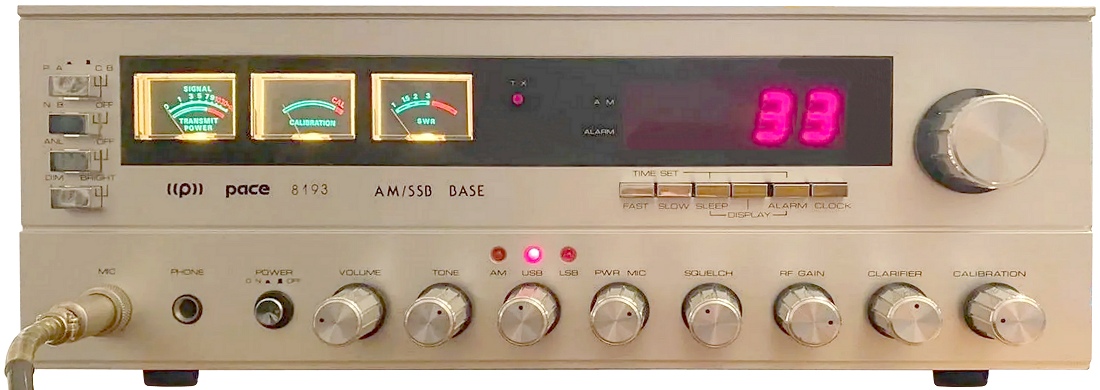

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (CCI3001) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | Mains: 117 VAC (Fixed power cord)
or 13.8 VDC (Male 2-pin jack, on pigtail) |
| Current drain / power consumption: | RX: Max ? A @ 13.8 VDC
TX: Max 3 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 360*140*270 mm (14.17*5.51*10.63") |
| Weight: | 7.3 Kg (16.1 lb) |
| Other features: |
PA. ANL/NB. Digital alarm clock and timer. Dimmer.
Tone control. Mic gain. SWR meter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 9.78 MHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
SSB: 0.2 uV (10 dB S+N/N)
|
| Squelch sensitivity: | 0.5 uV (Threshold) |
| Selectivity: |
AM: 5 KHz (-6 dB)
SSB: 2.2 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max AM modulation (Factory set): | Typically 95% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
PLL: CCI3001
|
| Known markets and approvals: |
USA
FCC Data: 8193
|

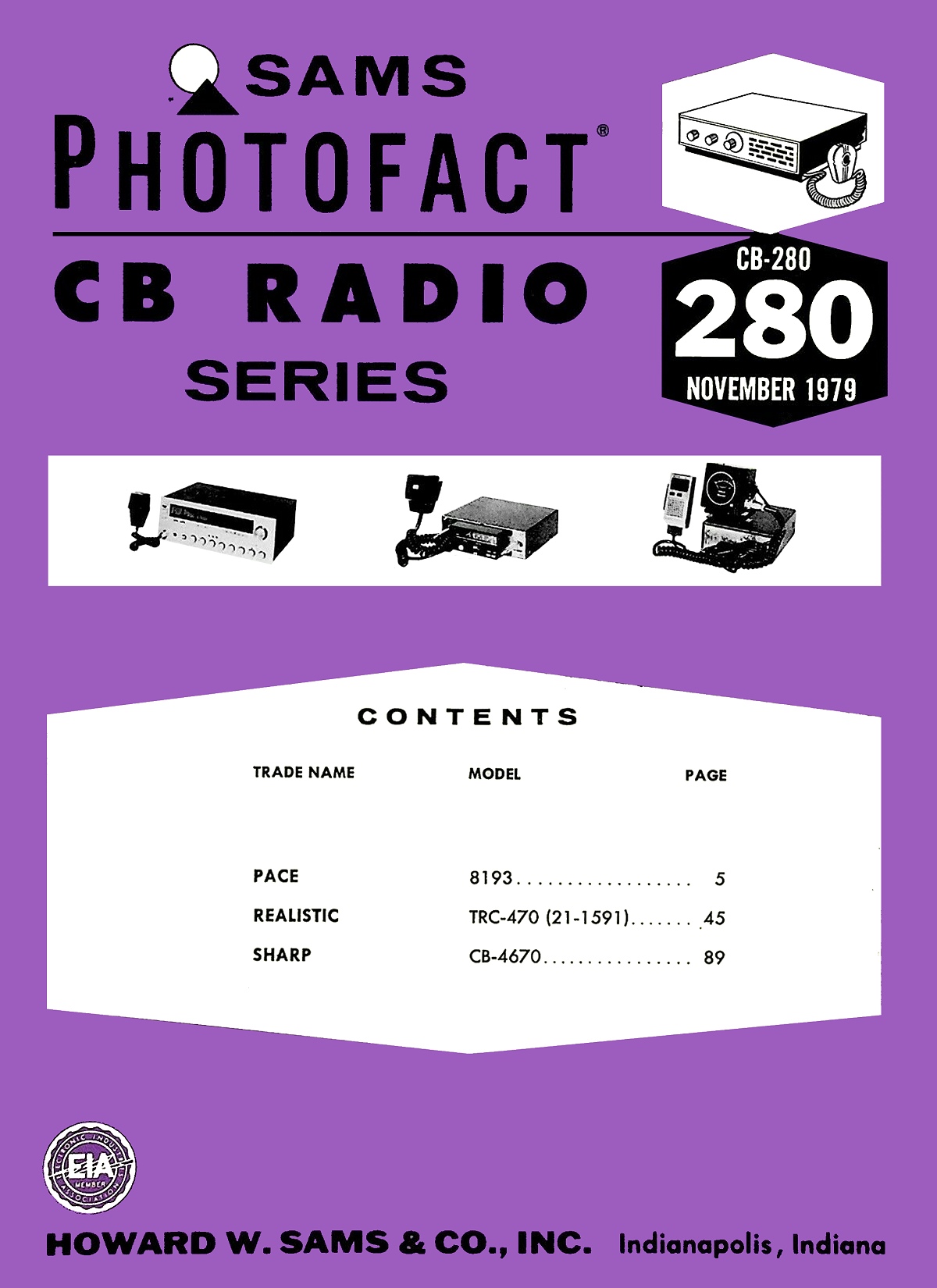

| Sams Photofact #: | CB-280 (November 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
