| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.225 MHz |
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM / FM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 220 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? VA
TX: ? VA |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (Switchable) |

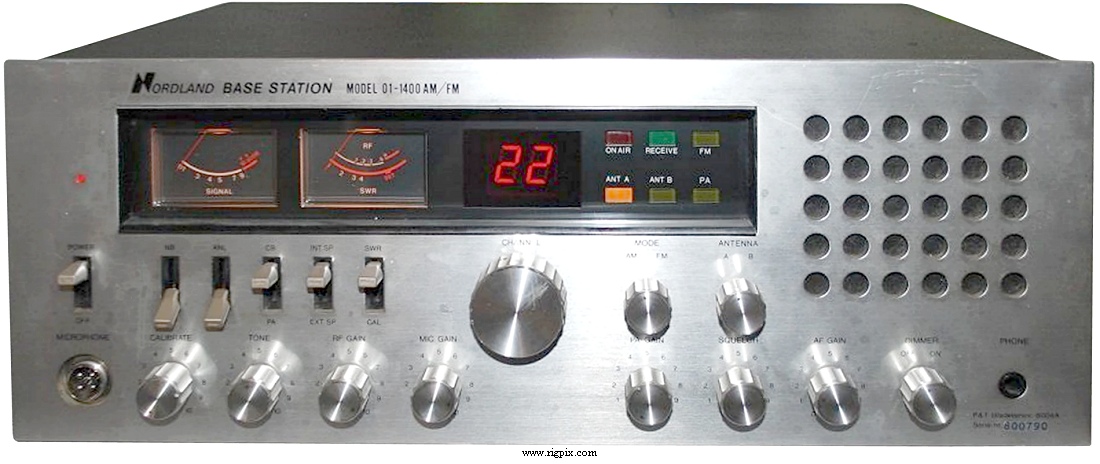

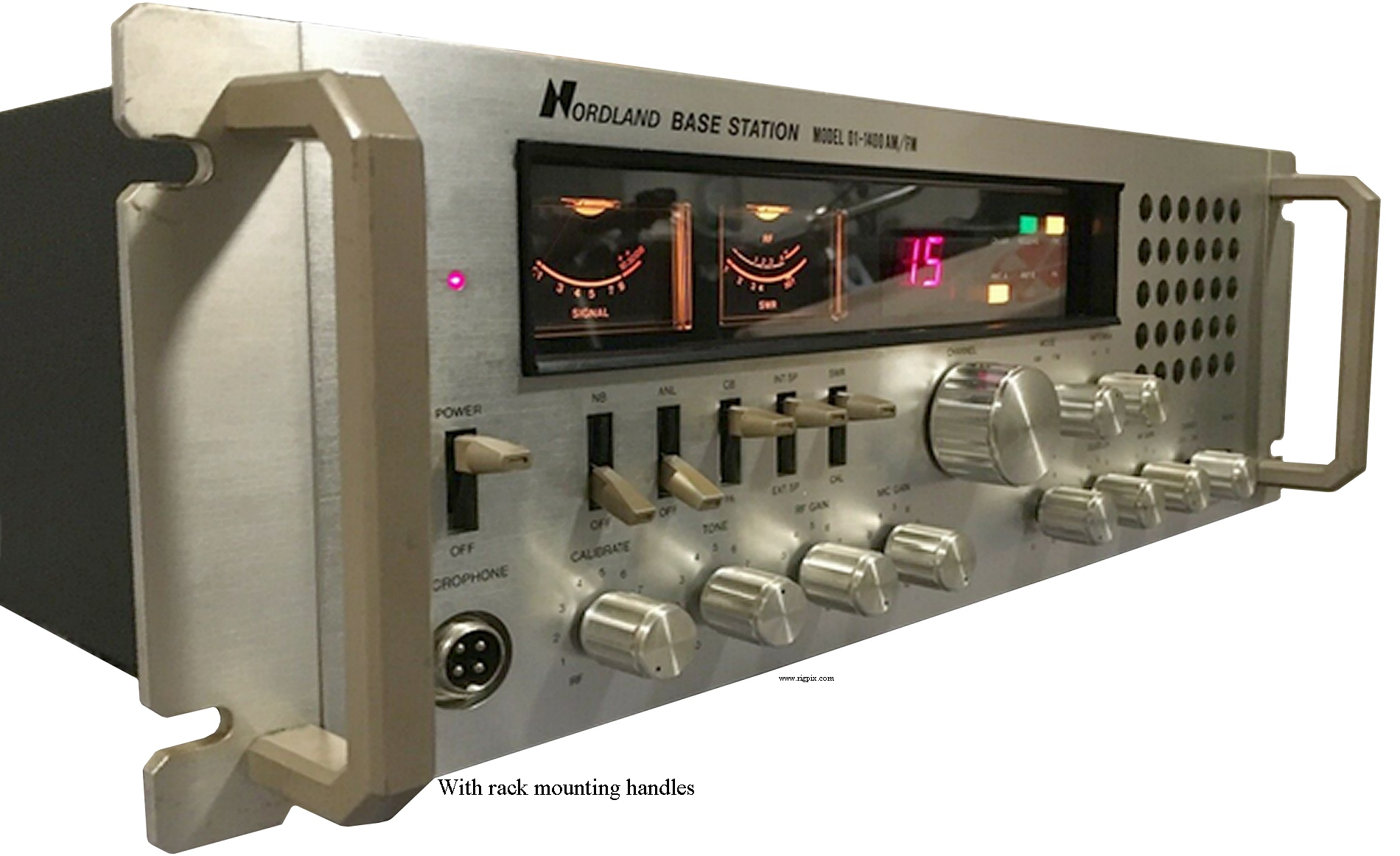

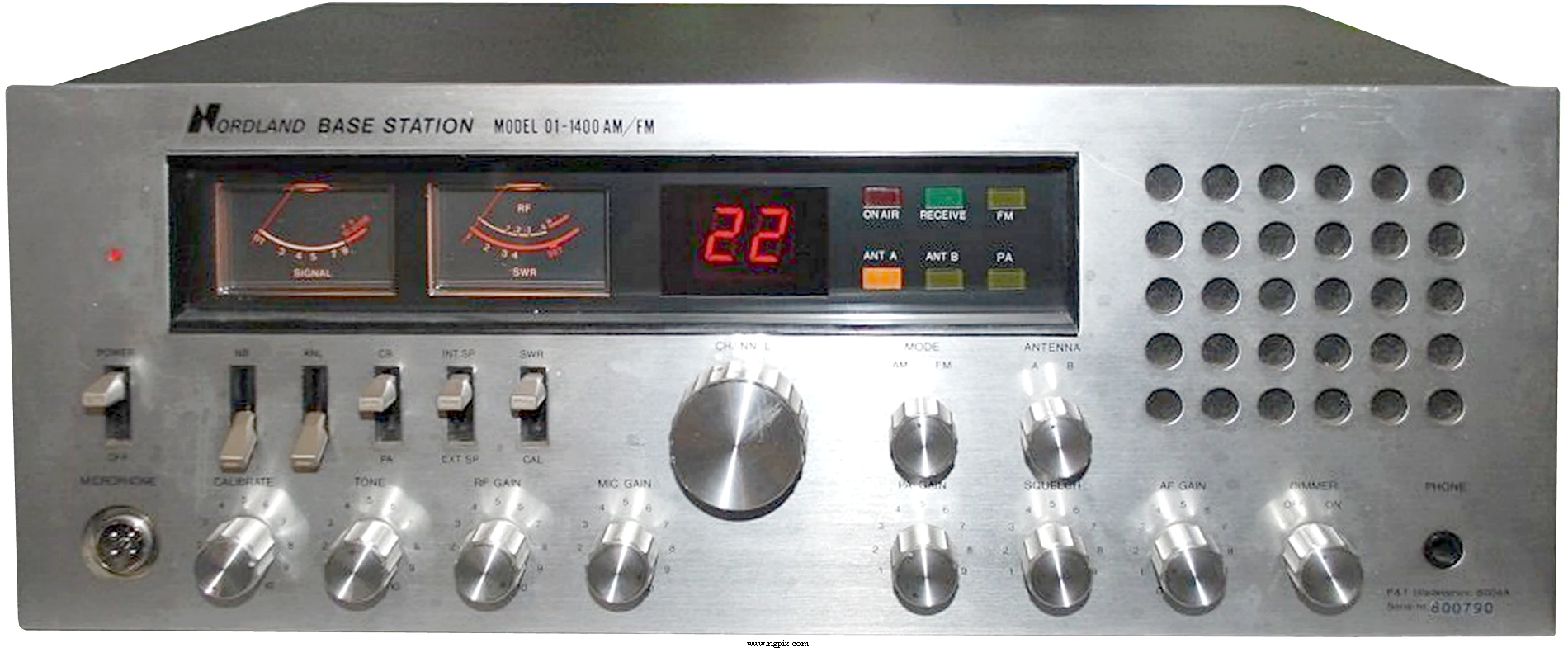

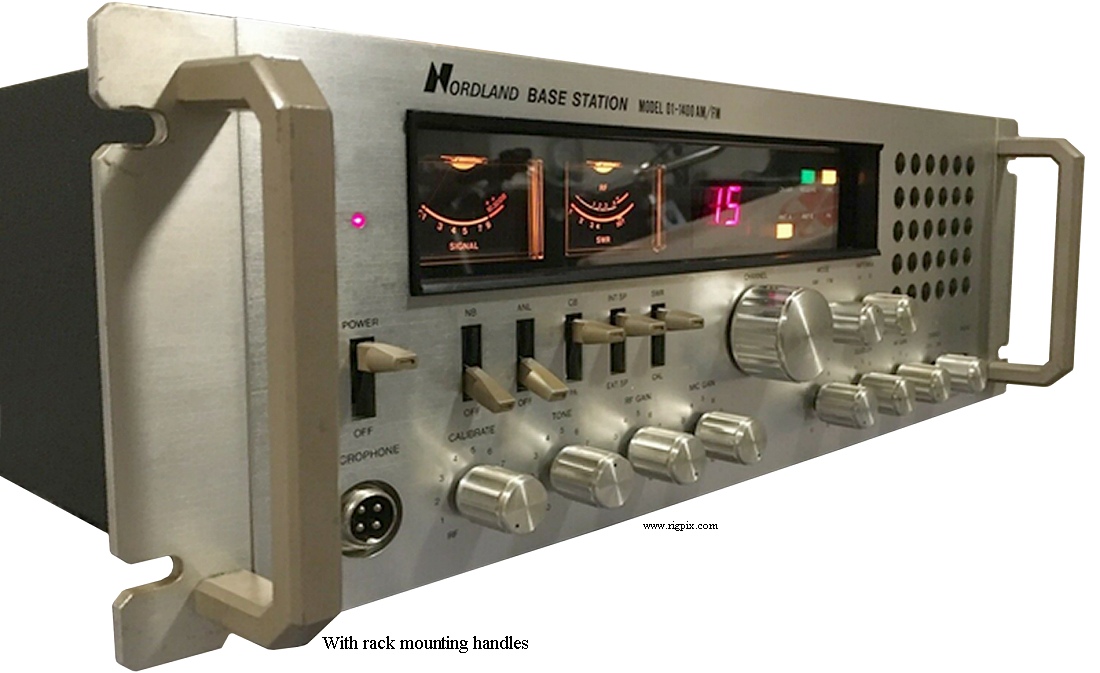

| Dimensions (W*H*D): | 405*150*300 mm (15.95*5.9*11.81"), without rack mounting handles |
| Weight: | 8.5 Kg (18.74 lb) |
| Other features: | PA. ANL/NB. SWR-meter. Tone control. Dimmer. External selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
FM: 1 uV (20 dB S/N)
|
| Squelch sensitivity: | |
| Selectivity: | 4 KHz (-5 dB)
10 KHz (-50 dB) |
| Image rejection: | >50 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | AM: 500 mW
FM: 500 mW |
| Modulation system: |
AM: High and low level class B collector modulation
FM: ?
|
| Max FM deviation (Factory set): | ±1.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Main PCB: | PTBM089COX by Cybernet Electronics Corporation |
| Sub PCBs: |
PTLD054COX - LED display and indicators board
PTPW007COX - AVR/power supply board
PTSR017COX - AWI board
PTSW058AOX - Channel selector board
PTZZ024AOX - Selcall relay board
PTZZ033AOX - FM board
|
| Additional info: | |
| Related documents: |
Schematic diagram (915 KB)
PLL: PLL02A
RF final: 2SC1957
|
| Market(s) / Approval(s): |
Denmark
P&T Tilladelses nr.8004A
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
