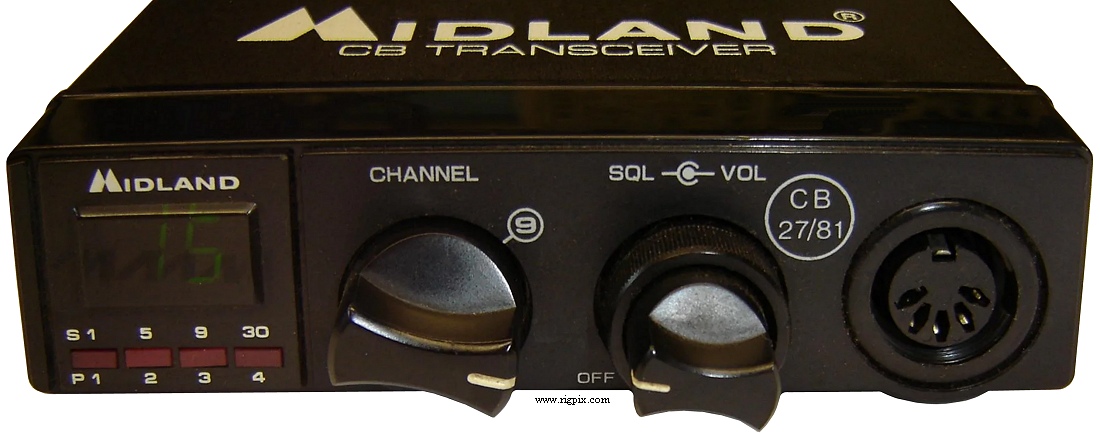

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK CB27/81) |
| Mode: | FM |
| Frequency control: | PLL (LC7137) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 114*32*170 mm (4.5*1.25*6.7") |
| Weight: | 735 g (1.62 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: 55HT
|
| Sensitivity: | 0.7 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 400 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea (By Maxon), 1987-1990 (Discontinued) |
| Main PCB: |
Early version
401064-? by Maxon
Single sided with through-hole components
Later version
401064-C by Maxon
Single sided with through-hole components
|
| Sub PCBs: | ? - LED channel display and S-meter board |
| Additional info: |
This model was replaced by the updated 77-104D (UK).
New price, november 1987 in the UK: £65.00
New price, march 1988 in the UK: £65.00
New price, june 1989 in the UK: £59.95
|
| Related documents: |
PLL: LC7137
FM-IF: MC3357P
|
| Known markets and approvals: |
United Kingdom
CB27/81, MPT1320UK
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
