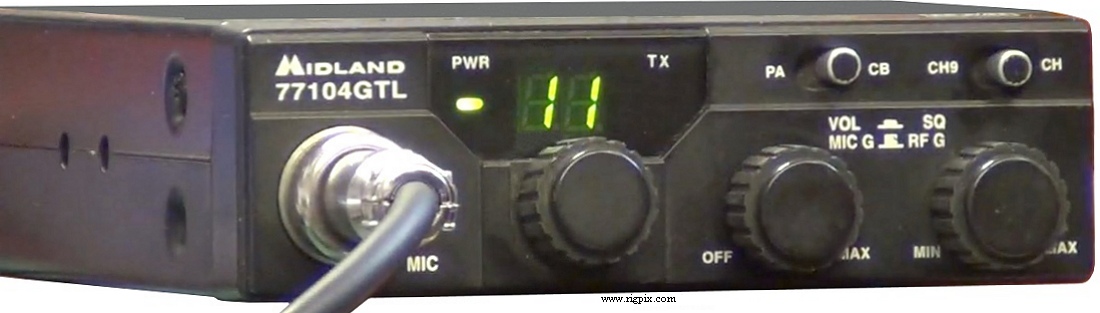

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK PR27/94) |
| Mode: | FM |
| Frequency control: | PLL (C5121-01) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: Less than 1.1 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: | PA. Channel 9 switch. Mic and RF gain. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: CQ 33-455HT
|
| Sensitivity: | <0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 1994-199x (Discontinued) |
| Main PCB: |
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: |
This radio has a rotary encoder instead of a traditional channel
selector. It always starts up on channel 9 at power on.
|
| Related documents: |
PLL: C5121-01
FM-IF: JRC3357D
|
| Known markets and approvals: |
United Kingdom
PR27/94, MPT1382UK
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
