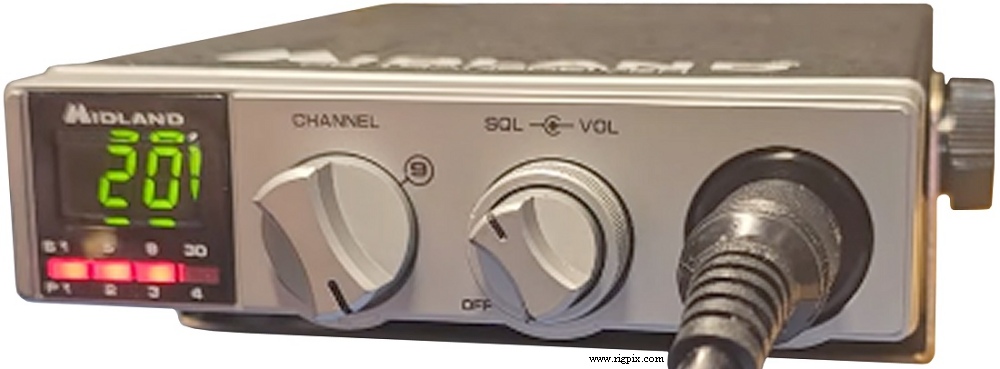

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 114*32*170 mm (4.5*1.25*6.7") |
| Weight: | 735 g (1.62 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | 45 dB ±10 KHz |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea (By Maxon), 1984-198x (Discontinued) |
| Main PCB: |
? by Maxon
Single sided with through-hole components
|
| Sub PCBs: | ? - LED channel display and S-meter board |
| Additional info: |
This model was available with either black or silver faceplate.
|
| Related documents: |
User manual (3.3 MB)
|
| Known markets and approvals: |
USA
FCC ID: AK59QL 77104
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
