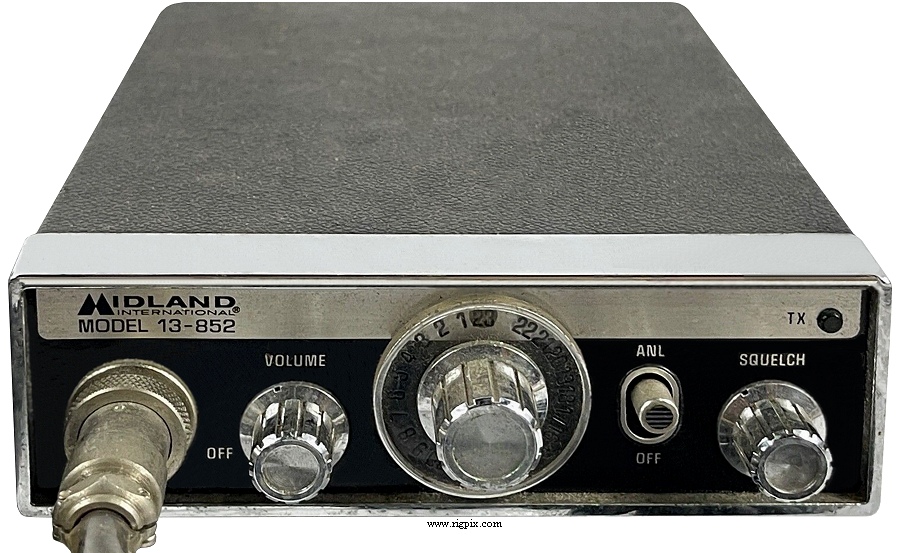

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 130*45*175 mm (5.12*1.77*6.89") |
| Weight: | 1.1 Kg (2.42 lb) |
| Other features: | ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | 0.25 uV (Threshold)
200 uV (Tight) |
| Selectivity: | 6.5 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 4% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | More than 90% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | 10 mV for 90% modulation |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-1976 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (6.8 MB)
AF amplifier: Two 2SD325
RF driver: 2SC1957
RF final: 2SC1678
|
| Known markets and approvals: |
USA
FCC Data: 13-852
|
| Sams Photofact #: | CB-104 (December 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
