| GENERAL |

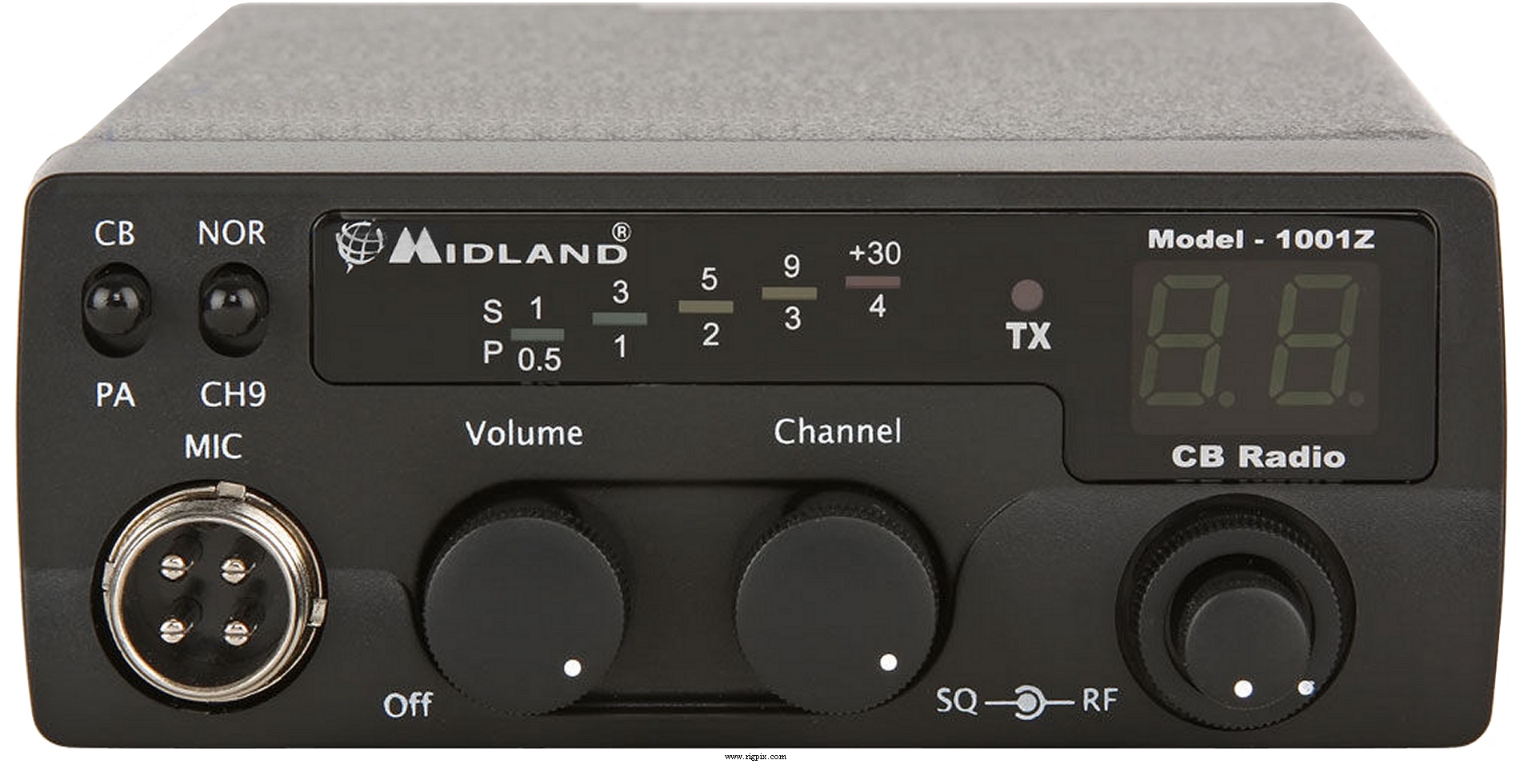

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (C5121) |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 124*38*165 mm (4.88*1.5*6.5") |
| Weight: | 735 g (1.62 lb) |
| Other features: | PA. Channel 9 switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 10 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 1 Kohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Thailand, 2005-20xx (Discontinued) |
| Main PCB: | By Maxon |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (650 KB)
Schematic diagram (257 KB)
PLL: C5121
AF amp: KIA7217AP
|
| Market(s) / Approval(s): |
USA
FCC ID: MMA1001
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Popular Communications: September 2005, page 24 |
| Options / Accessories: |
|
