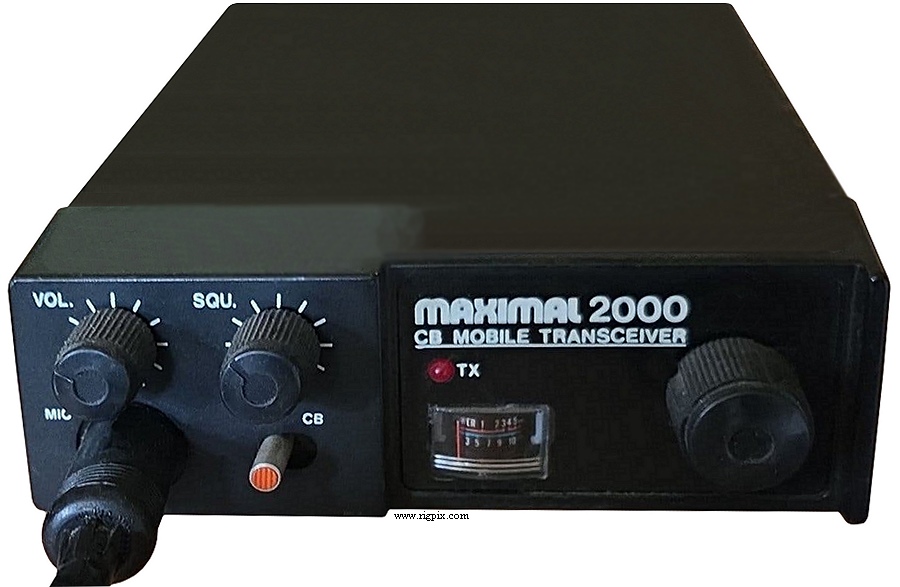

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.225 MHz |
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | XTAL matrix (15 XTALs) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: 120 mA (No signal)
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 129*42*184 mm (5.07*1.65*7.24") |
| Weight: | 1.04 Kg (2.29 lb), without mobile bracket |
| Other features: | PA. External selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: LF-B6
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: |
MC0008 by ?
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
AF amplifier: TA7204P
RF final: 2SC1306
|
| Known markets and approvals: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
