| GENERAL |
| Type: | Citizen band / Freeband / Export transceiver |
| Frequency range: |
Standard
26.965-27.855 MHz
Expanded
24.715-30.105 MHz
|
| Channels / tuning steps: | 80 (Standard)
480 (Expanded)
or 10 / 100 Hz, 1 / 10 / 100 KHz, 1 MHz |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Continuous (Digital VFO) |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 128*25*101 mm (5.04*1.05*3.98") |
| Weight: | 478 g (1.05 lb) |
| Other features: |
PA. ANL/NB. Dual watch. AI noise reduction. Roger beep.
VOX. ASQ. Selectable backlite colors. Talkback. Scanning.
Dimmer.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S+N/N)
FM: 0.3 uV (12 dB SINAD)
SSB: 0.25 uV (10 dB S+N/N)
|
| Squelch sensitivity: | |
| Selectivity: |
AM/FM
6 KHz (-6 dB)
9 KHz (-60 dB)
SSB
2.6 KHz (-6 dB)
3.3 KHz (-60 dB)
|
| Image rejection: | 80 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 7 W (Average)
FM: 7 W
SSB: 15 W (PEP)
|
| Modulation system: | |
| Max AM modulation (Factory set): | ? % |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 2.2 Kohm / 8-pin (RJ45 modular jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Bond Telecom Co. Ltd.), 2026-202x |

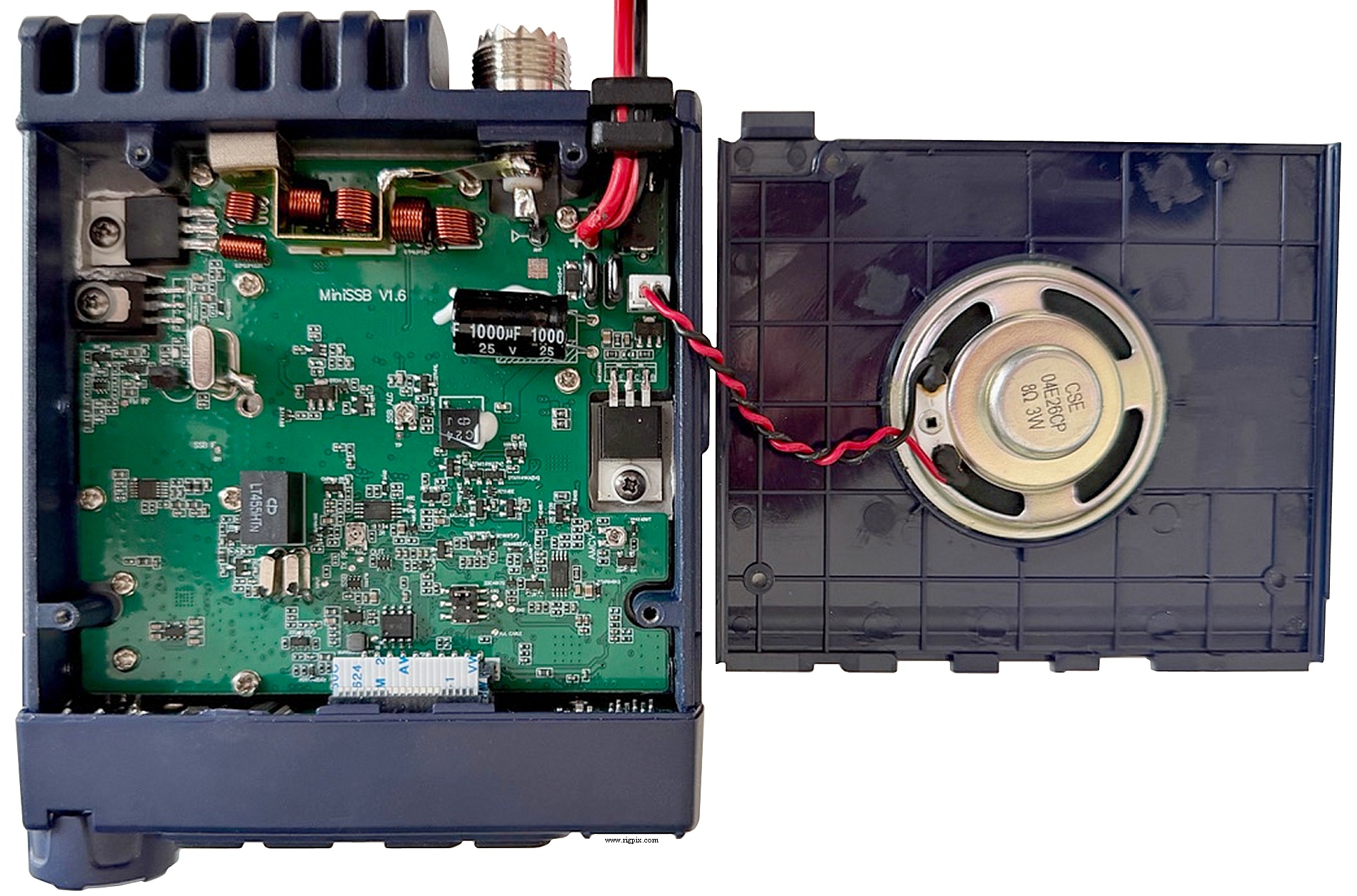

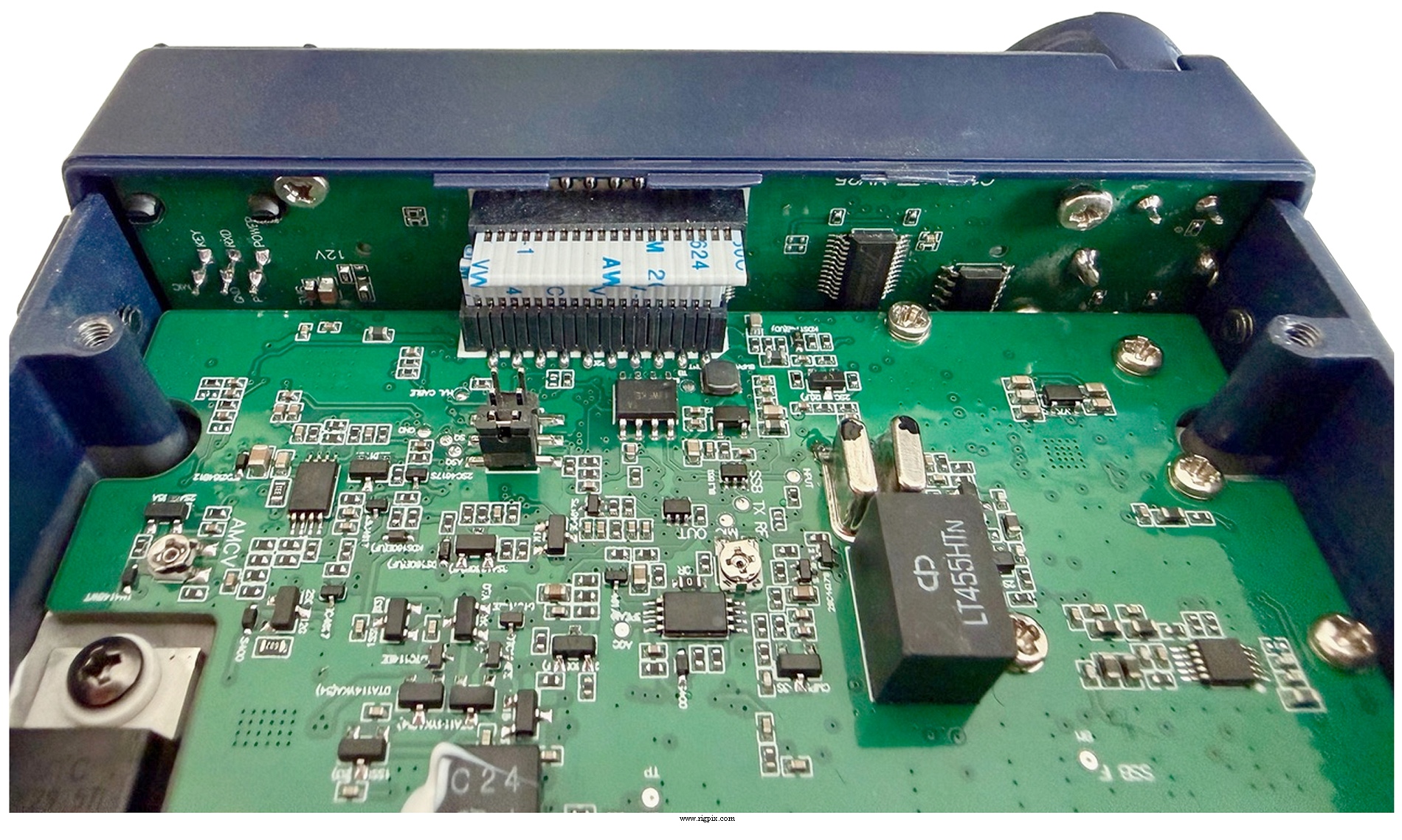

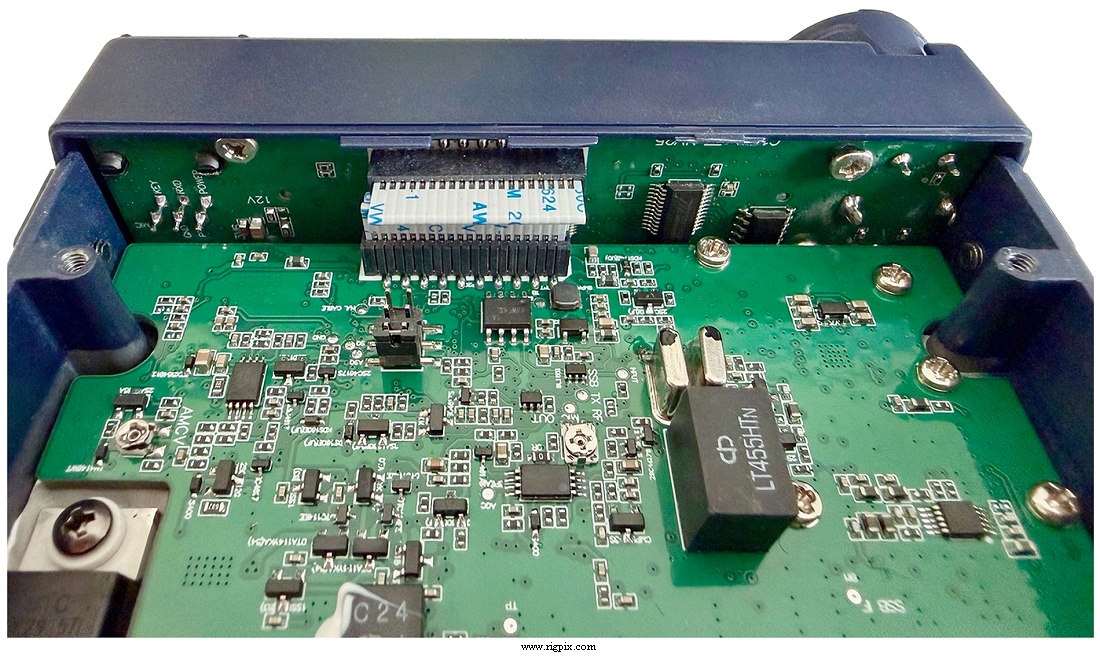

| Main PCB: |
Double sided with mainly SMD components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (4.4 MB)
|
| Known markets and approvals: |
Export (Expanded)
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
