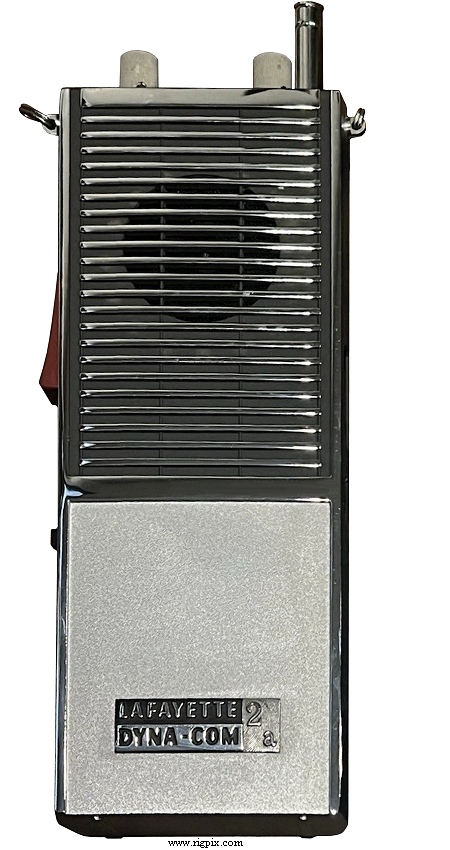

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-15 VDC (Ten R6 / AA alkaline or NiCd batteries)
or 12-15 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: 20-100 mA
TX: 170-250 mA |
| Antenna impedance / connector: | - / Fixed telescopic whip
50 ohm / TS "Minijack" (3.5 mm) |
| Dimensions (W*H*D): | 95*219*43 mm (3.75*8.62*1.69") |
| Weight: | 821 g (1.81 lb), with batteries |
| Other features: | Battery/RF power meter. "Range boost". |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S+N/N) |
| Squelch sensitivity: | 1 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 6 KHz (-6 dB)
20 KHz (-20 dB) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~1 W (1.5 W input) |
| Modulation system: | High level push-pull |
| Max AM modulation (Factory set): | 100% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1968-1970 (Discontinued) |
| Main PCB: |
TVP14160 by ?
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: |
New price 1968 in the US: $49.95 (Including XTALs for channel 10)
New price 1969 in the US: $49.95 (Including XTALs for channel 10)
New price 1970 in the US: $39.95 (Including XTALs for channel 10)
|
| Related documents: |
User manual (710 KB)
|
| Known markets and approvals: |
USA
FCC: Type accepted Part 95, Class D
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options/Accessories: |
|
