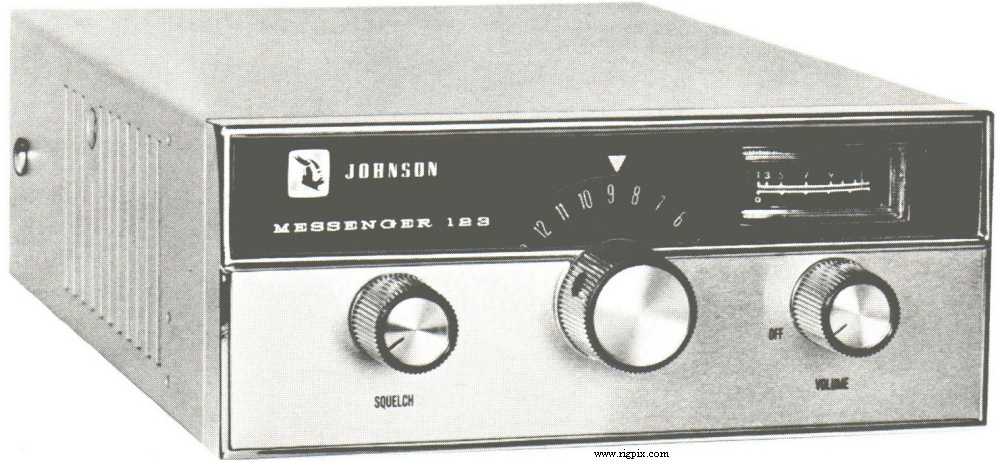

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix (14 XTALs) |
| Frequency stability: | ±0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 350 mA (Squelched)
TX: 850 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 157*64*222 mm (6.19*2.5*8.75") |
| Weight: | 2.27 Kg (5 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Selectivity: | 6 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | High level, class B |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 1 Kohm / Fixed cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1969-197x (Discontinued) |
| Main PCB: | Single sided |
| Sub PCBs: | |
| Additional info: | Approximately 48000 units were manufactured |
| Related documents: | Service manual (22 MB) |
| Sams Photofact #: |
CB-24 (November 1969)
CB-42 (October 1972)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
