| GENERAL |

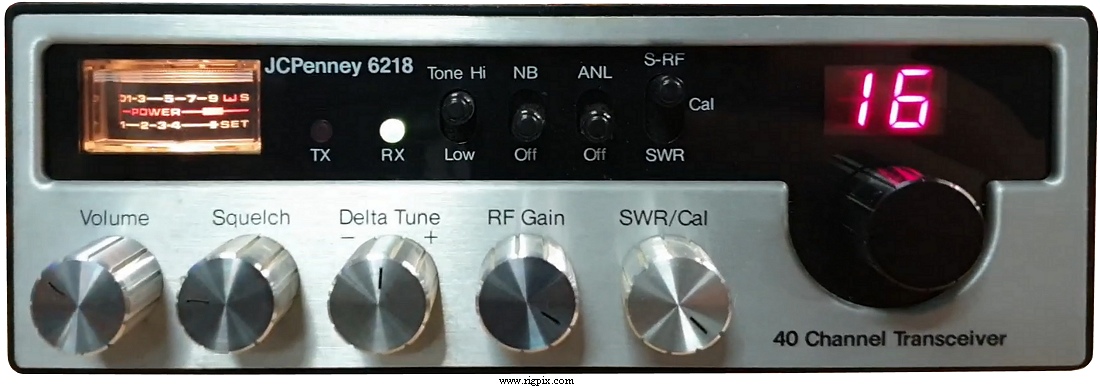

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 190*65*250 mm (7.48*2.56*9.84") |
| Weight: | 2.1 Kg (4.63 lb), without mounting bracket |
| Other features: |
ANL/NB. Tone hi-cut. SWR meter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-1979 (Discontinued) |
| Main PCB: |
PTBM? by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: |
? - LED channel display board
? - Channel selector board
? - SWR board
|
| Additional info: |
New price 1978 in the US: $129.00
New price 1979 in the US: $99.00
|
| Related documents: |
PLL: PLL02A
|
| Known markets and approvals: |
USA
FCC Data: 6218
|

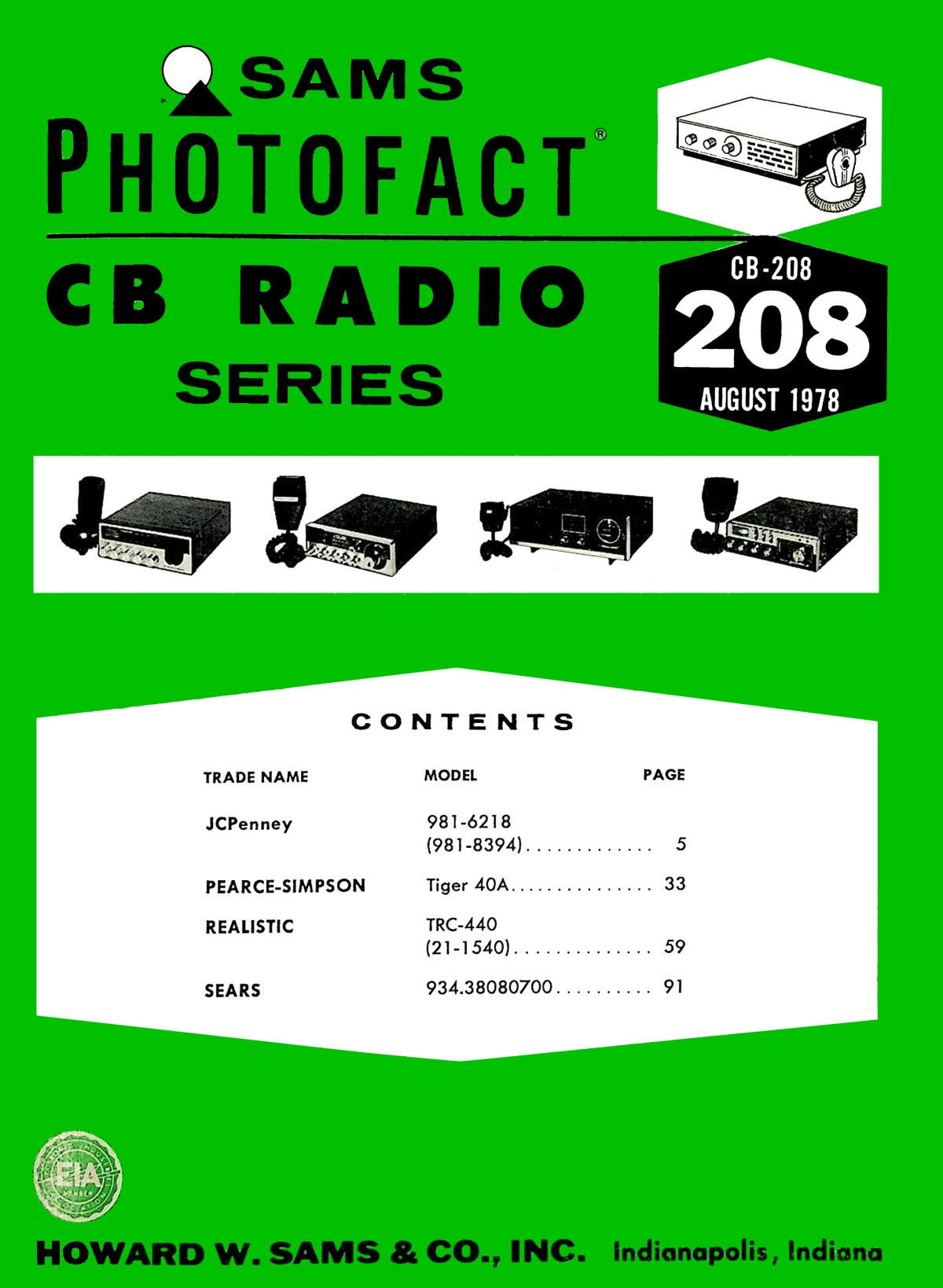

| Sams Photofact #: | CB-208 (August 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
